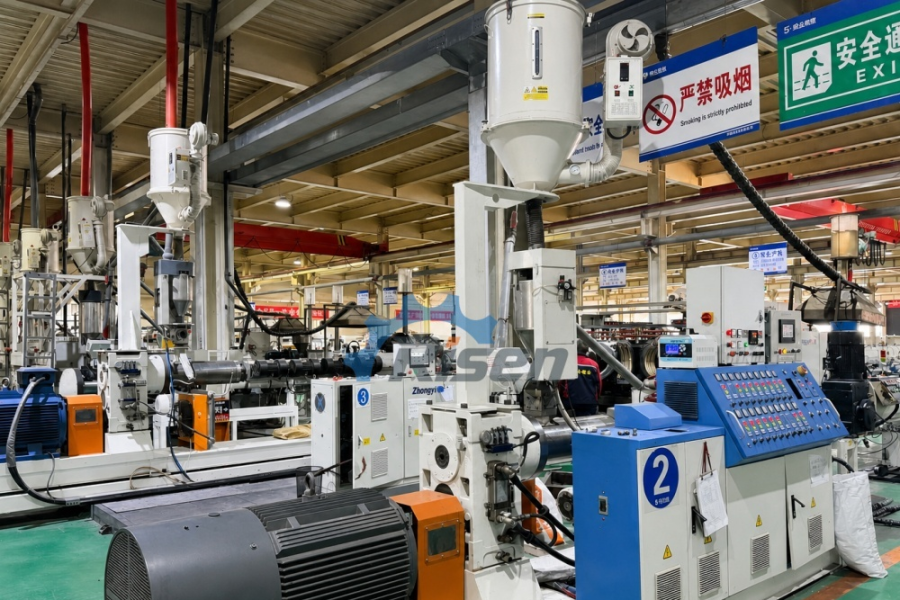

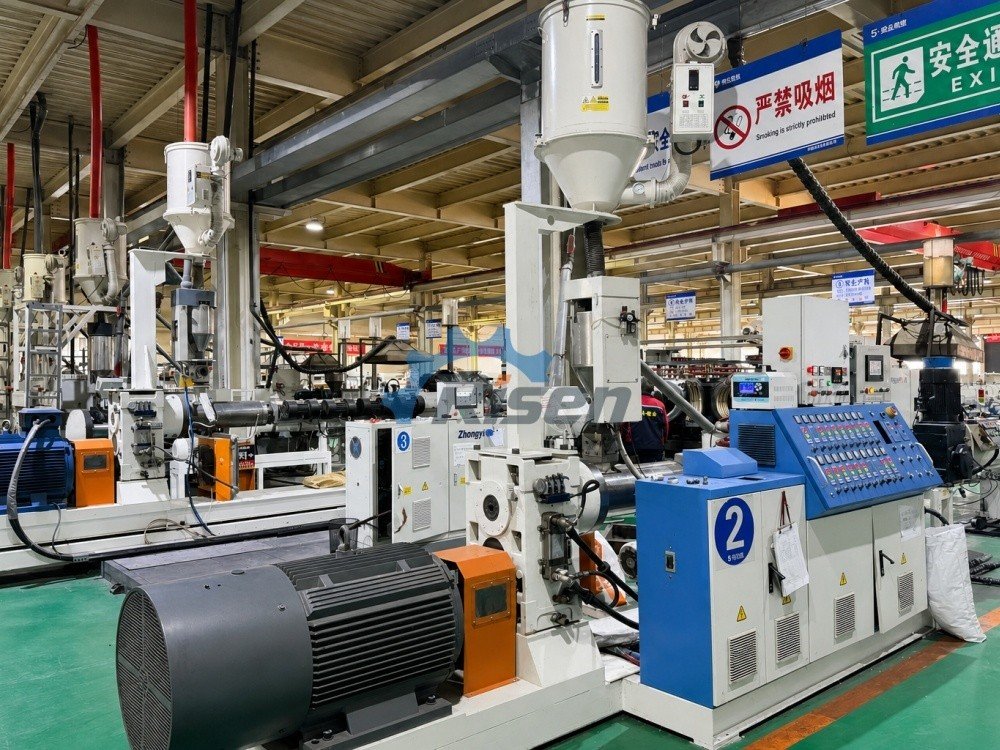

HDPE Water Supply Pipe Production Line

HDPE Water Supply Pipe/Power Conduit Production Line

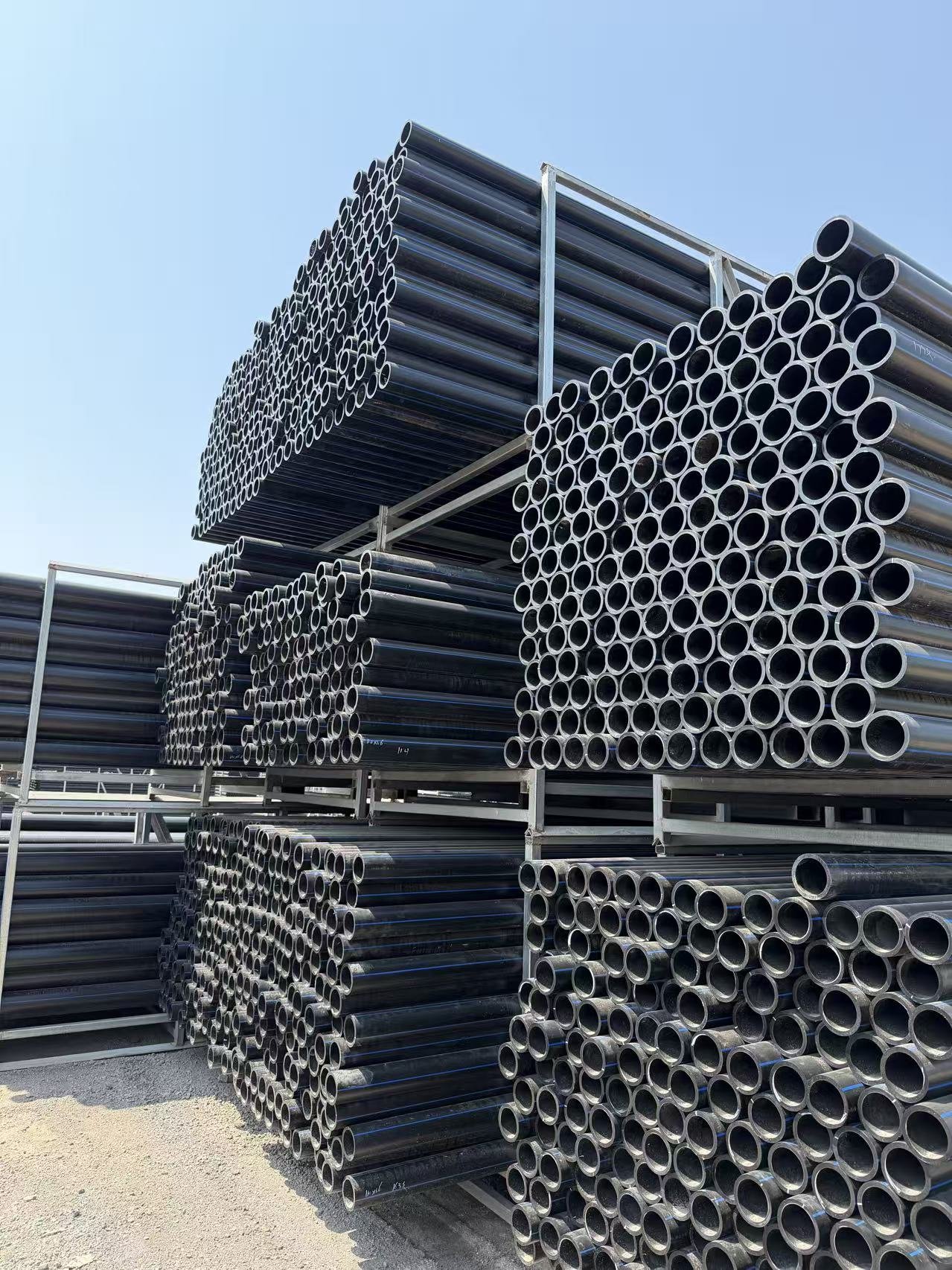

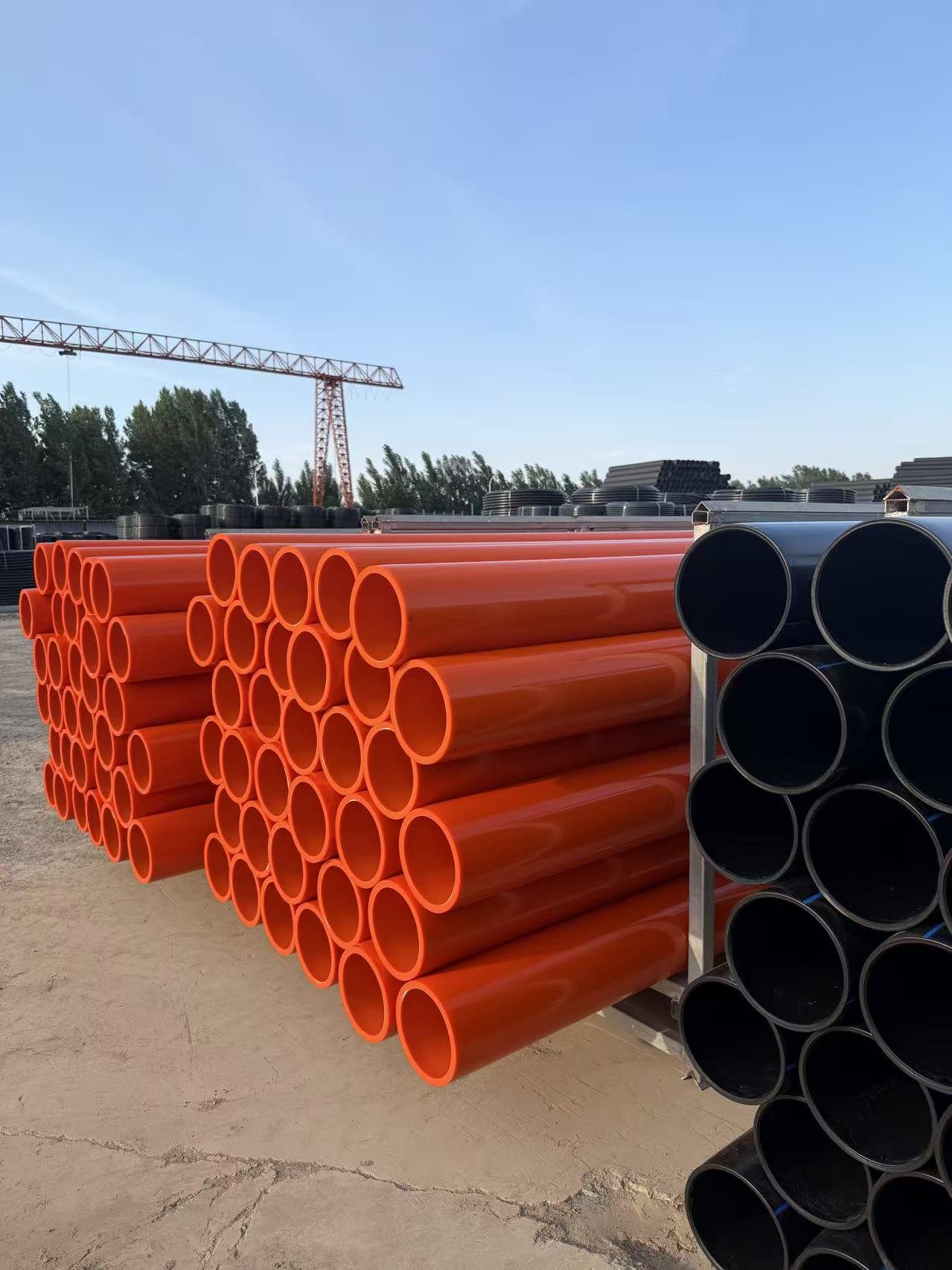

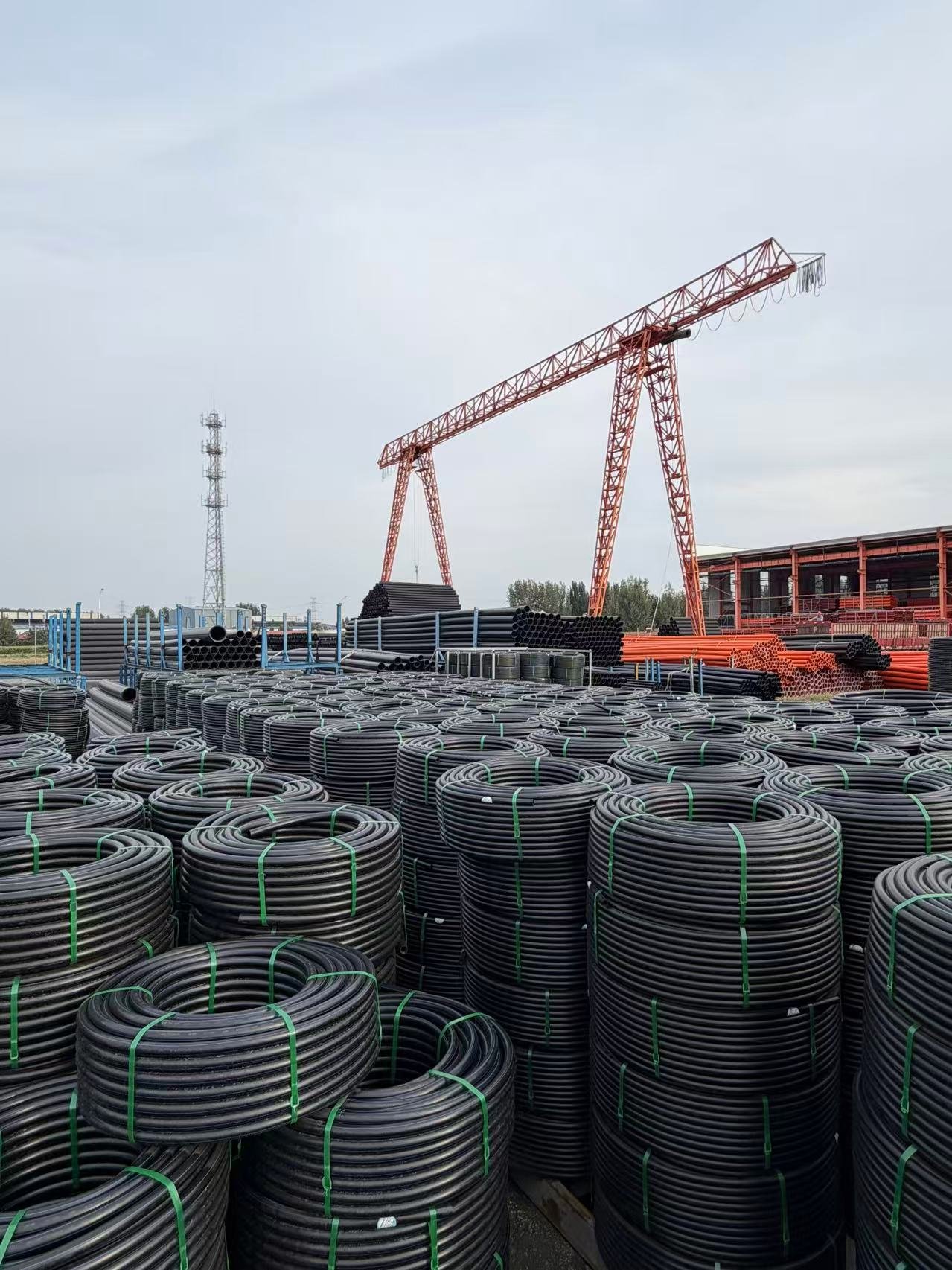

     HDPE water supply pipes are manufactured using high-quality polyethylene (PE) resin. The product range spans diameters from 20 mm to 1,200 mm, with various pressure classes and specifications available to meet project requirements, and they comply with international standards such as ISO 4427 and EN 12201. Pressure ratings cover PN6 (SDR26) to PN16 (SDR11), ensuring suitability for diverse water-delivery pressures and engineering conditions.

1.Vacuum Sizing Water Tank&Spraying Water Tank

Machine Model:

Machine List:

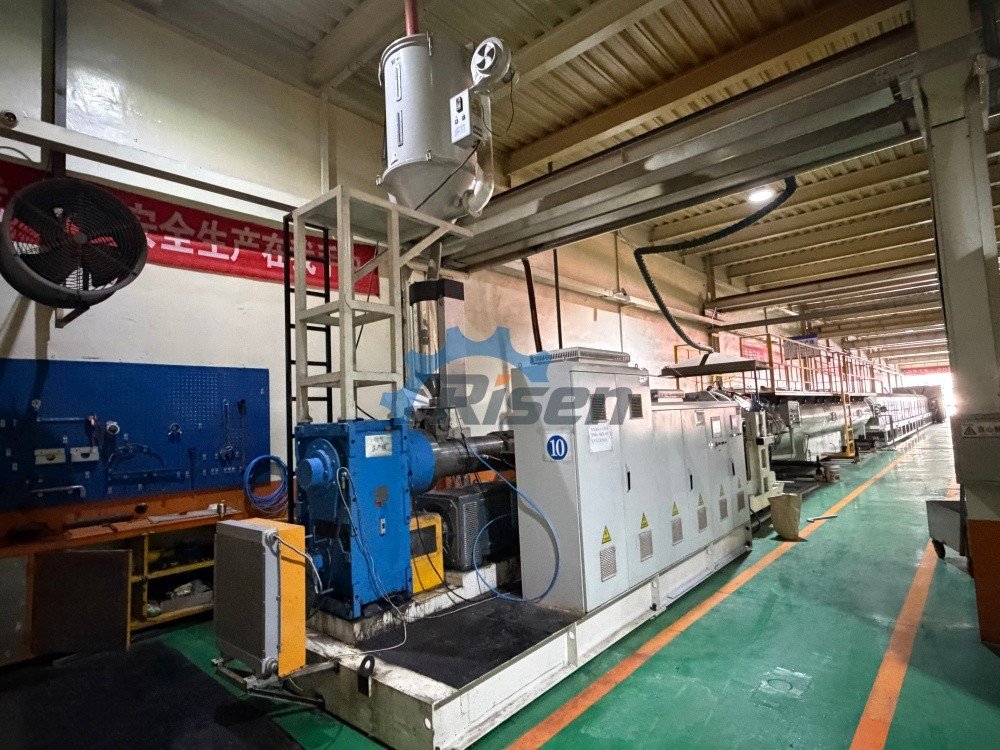

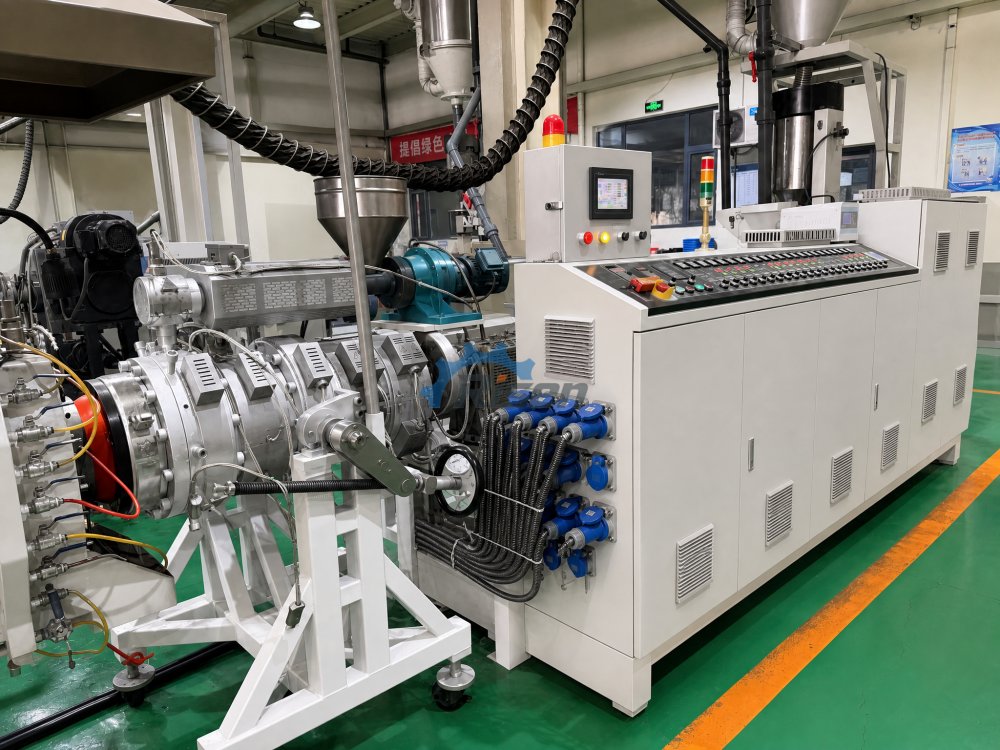

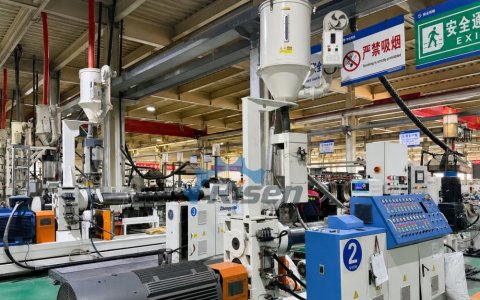

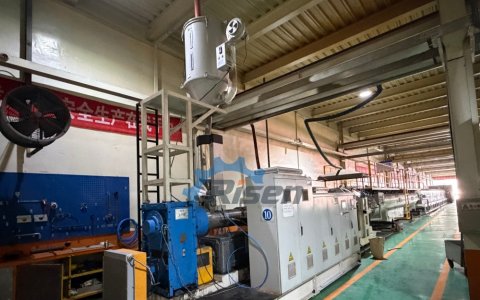

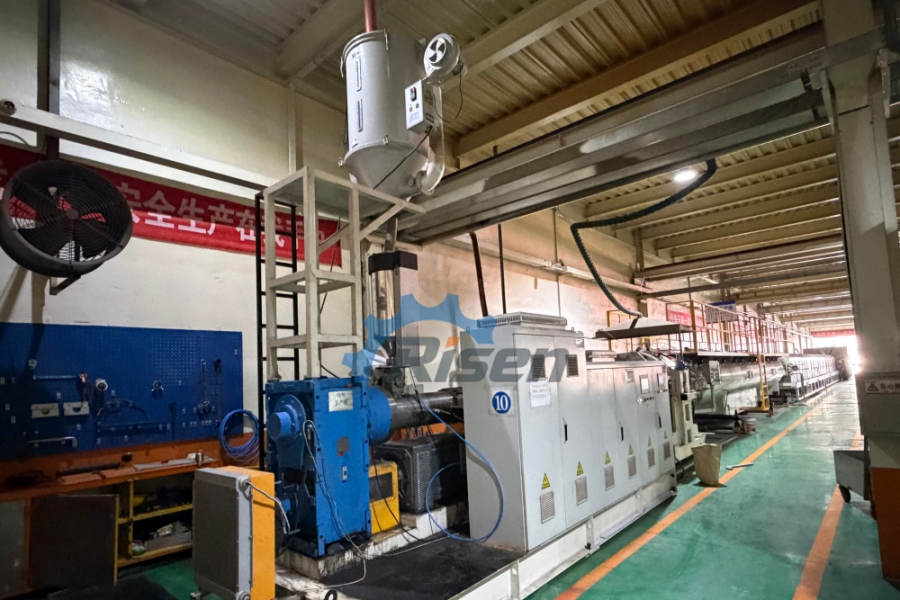

1.Single Screw Extruder

Specially designed screw of premium plasticization to achieve high output and high torque.

According to customer’s request,could equip meter weight controller,which could guarantee the pipe thickness uniform and even,make operation more simple,reduce the wastage of raw material.

High quality electric components as Siemens motor,ABB inverter,Schneider/Siemens controller,Omron temperature controller.

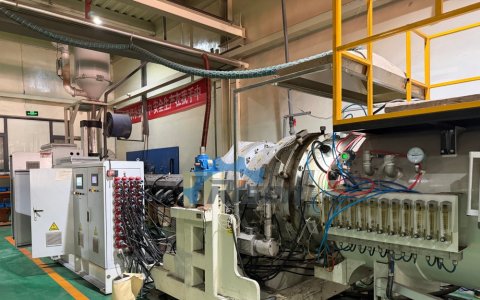

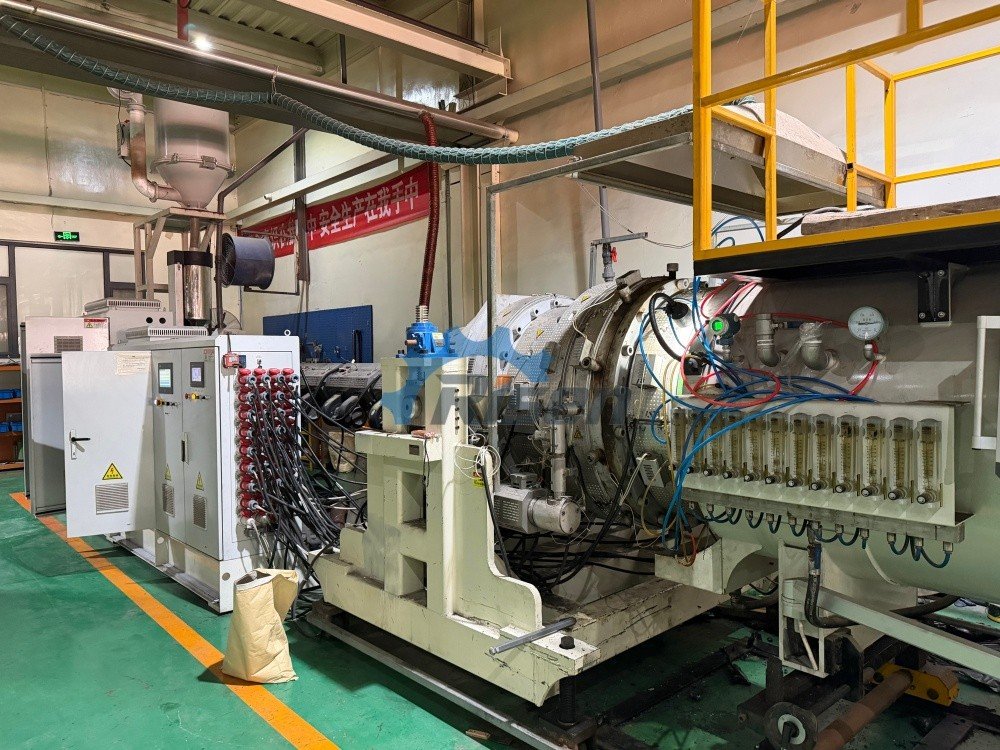

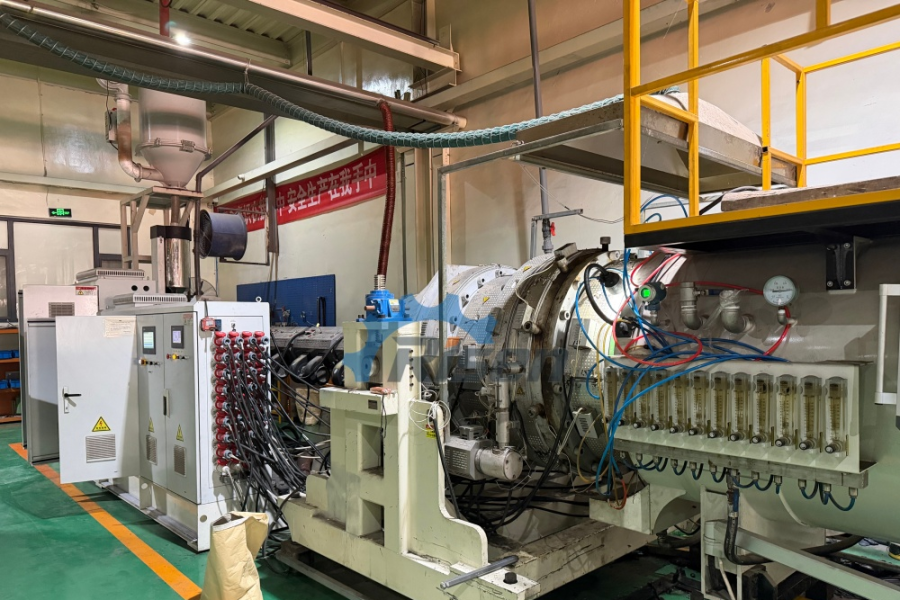

2.Die head

High-quality mould steel

Flow path is polished and chromeplated,good high-temperature rigidity and strong resistance to thermal deformation

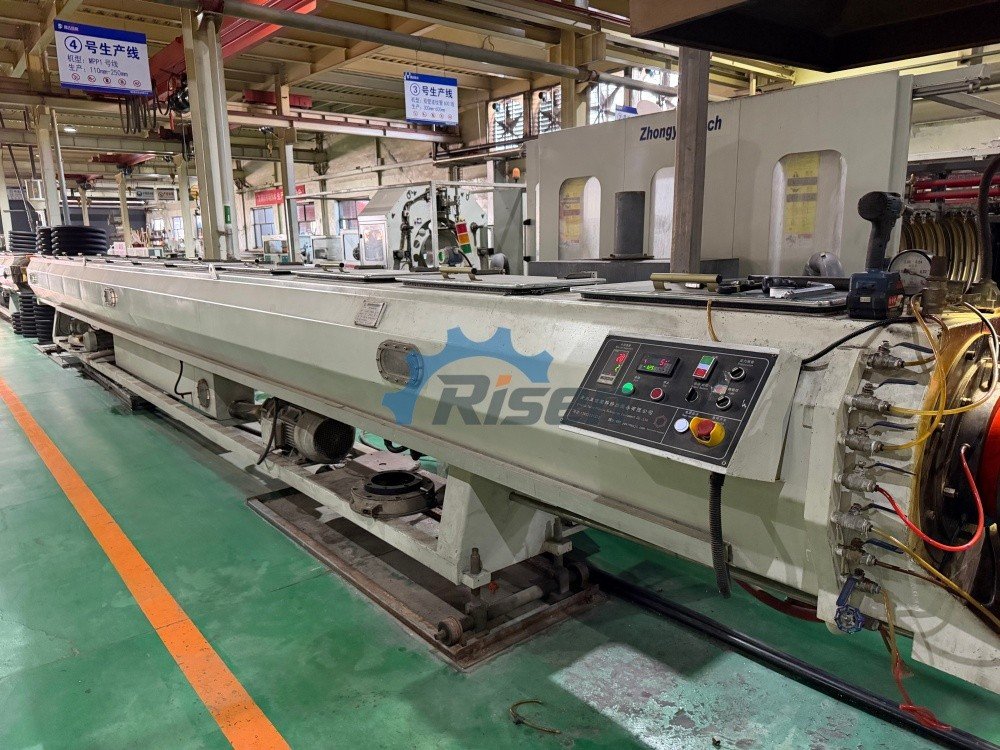

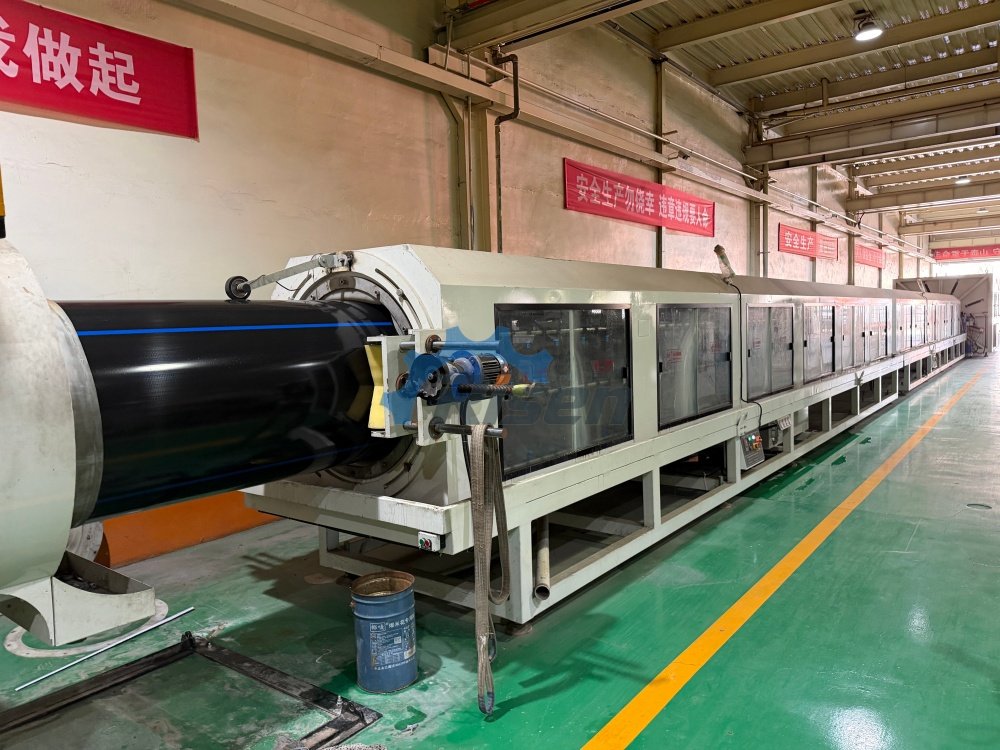

3. Vacuum Sizing Water Tank&Spraying Water Tank

304 Stainless steel water tank

Brass sizing sleeve for high-speed extrusion

High quality water-ring vacuum pump,mount water level gauge and impurity filter in the pipeline system

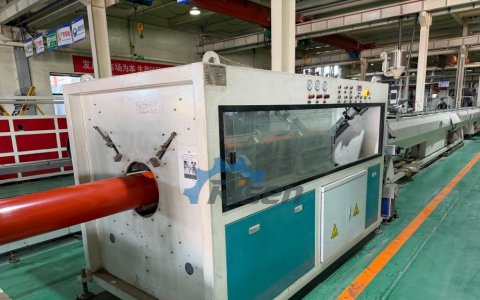

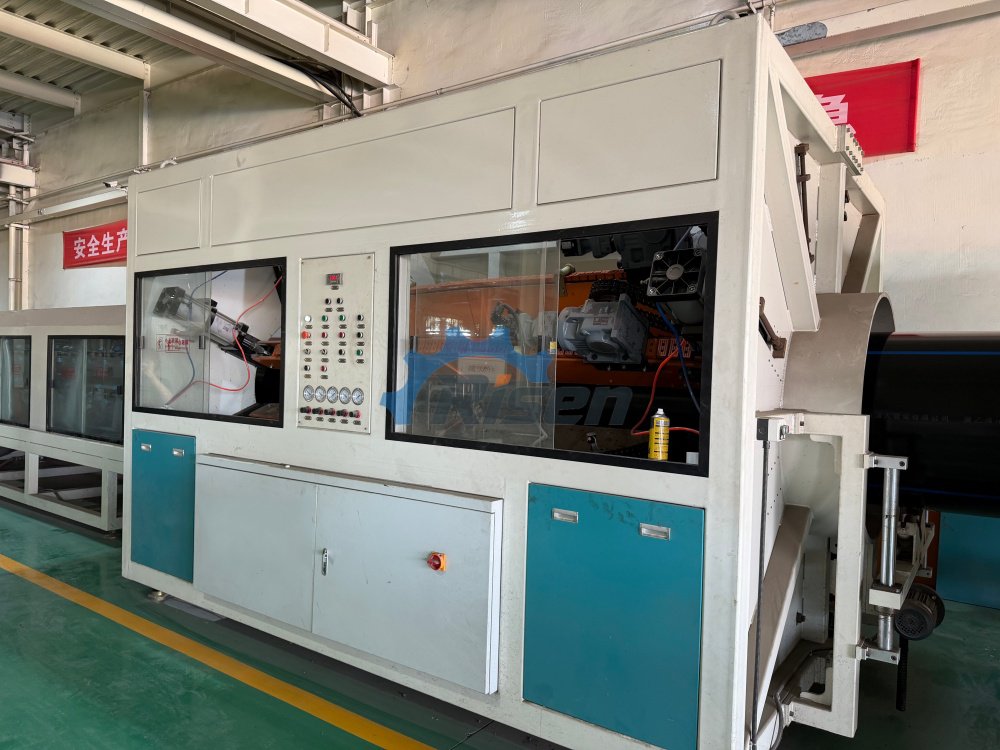

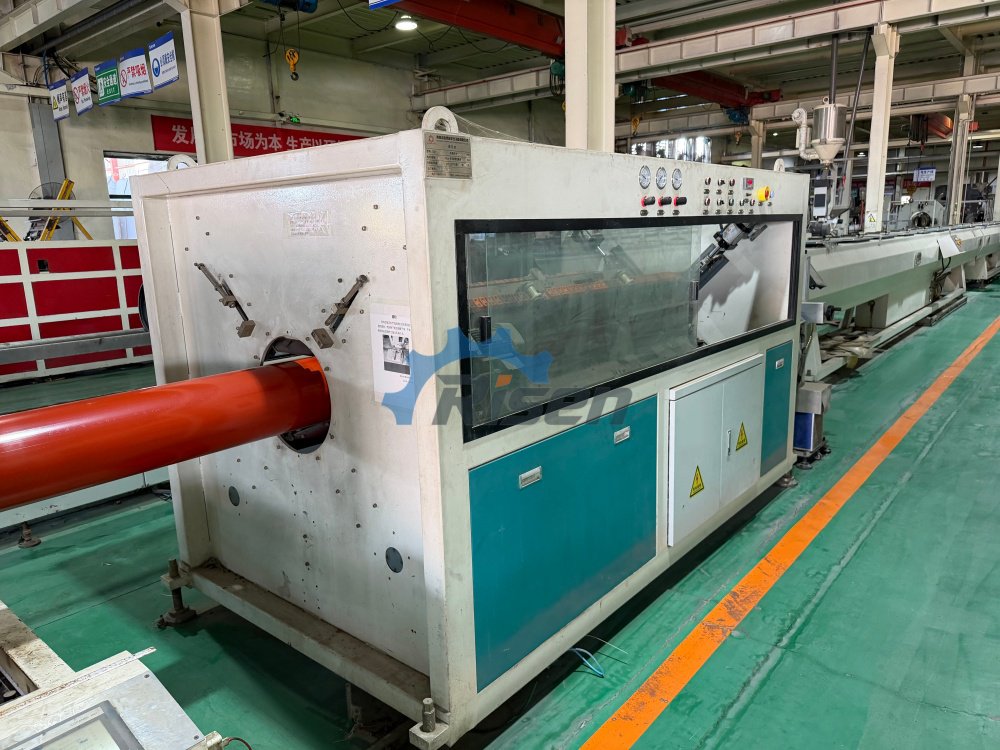

4. Multi-Claw Haul-off Unit

Multi-claw tractor could be with double-claw,three-claw,four-claw,six-claw and eight-claw,etc

Speed control by ABB inverter

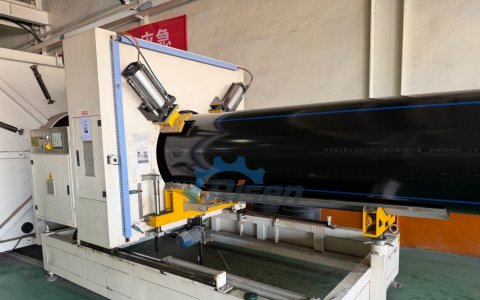

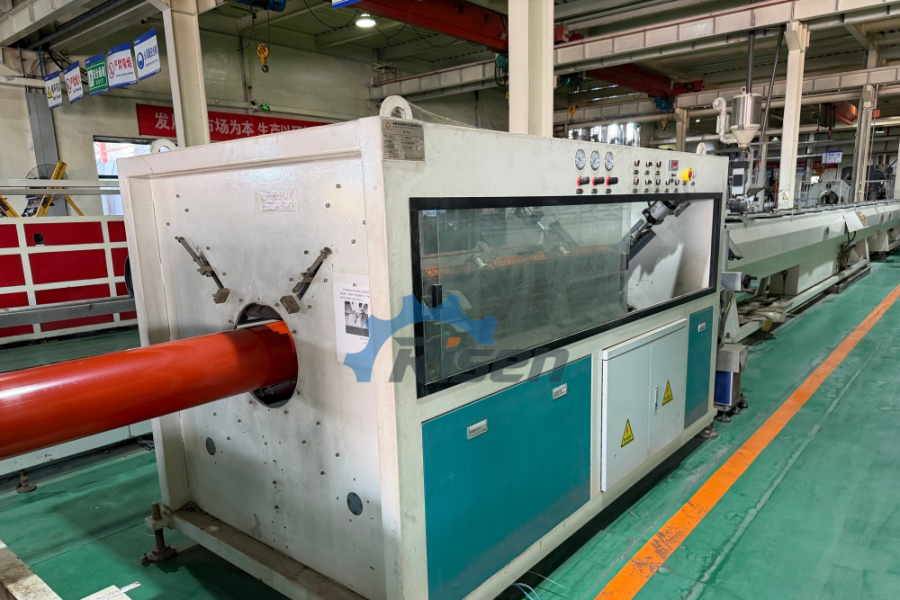

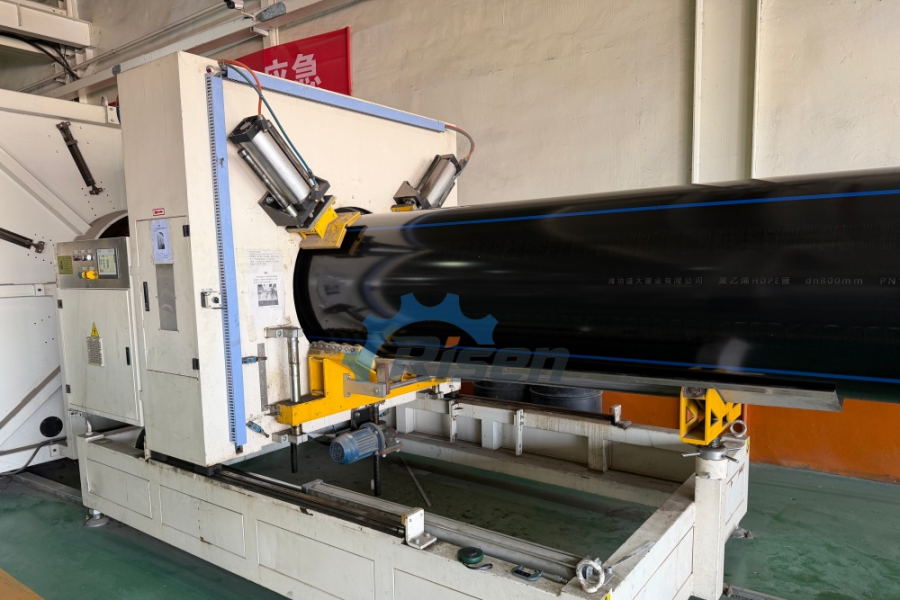

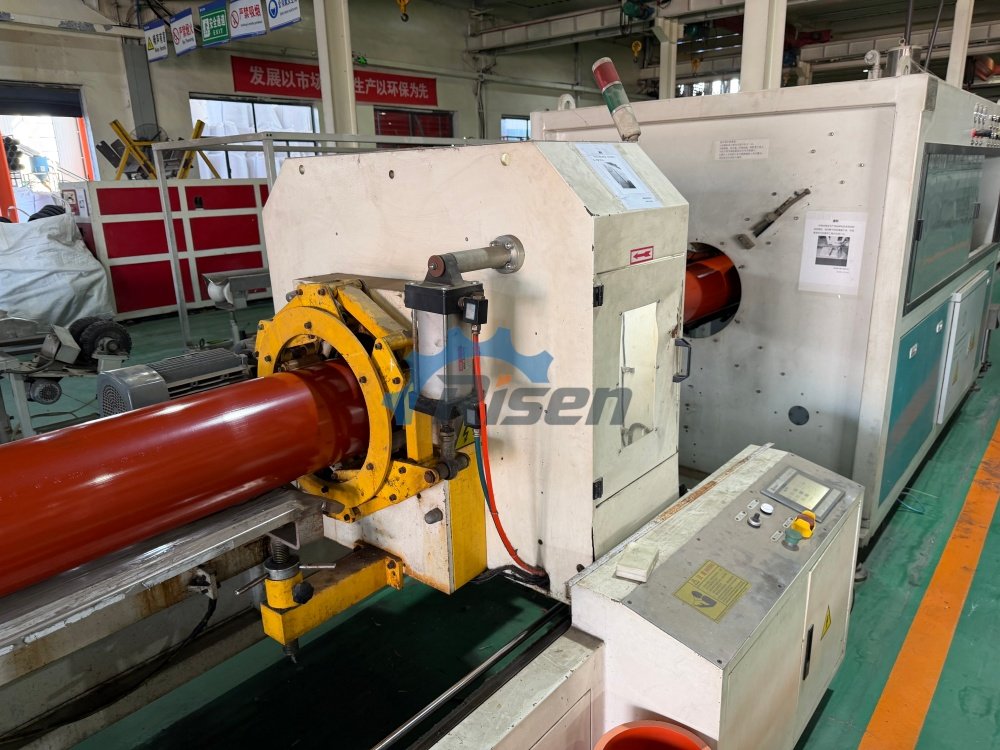

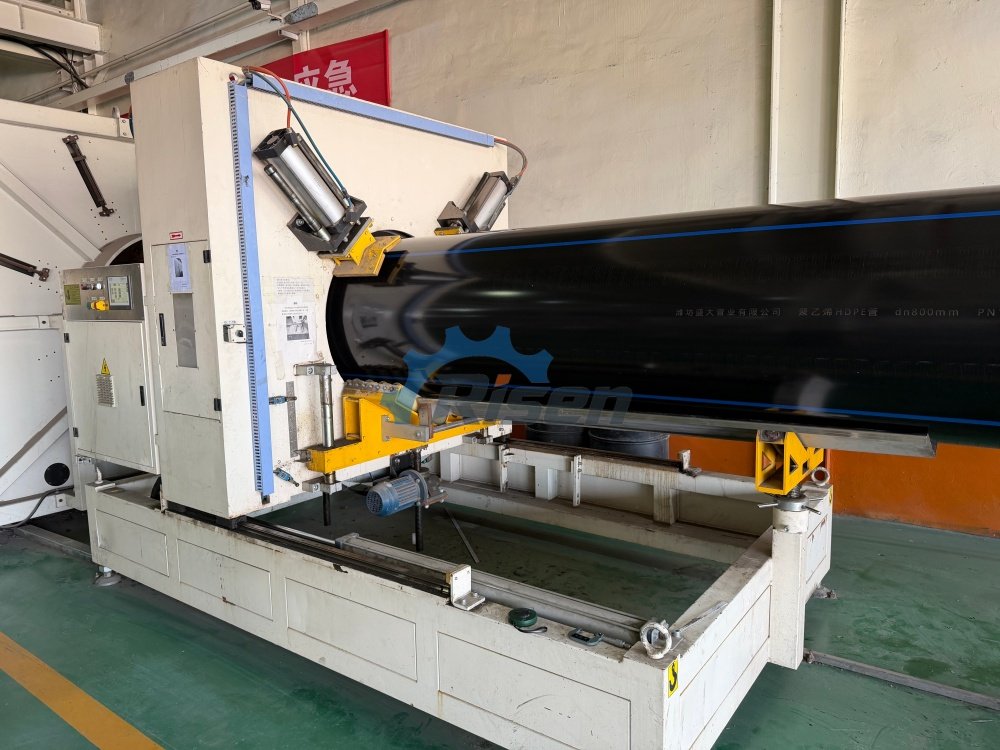

5.Non-dust Cutter

High-quality alloy steel SKD11 cutting blade

PLC control ,high-precision fixed-length cut

Chipless cutting

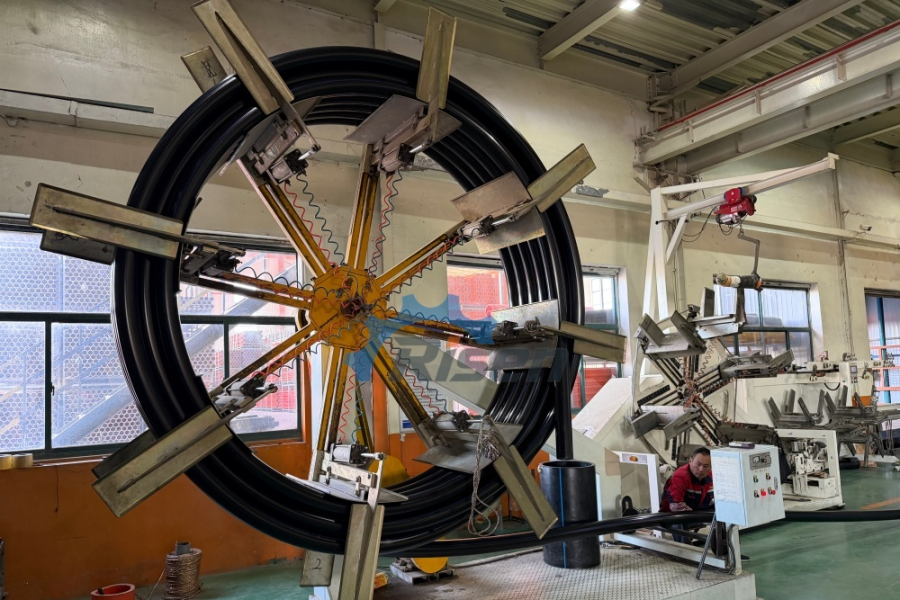

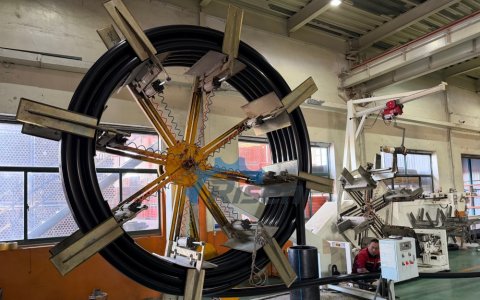

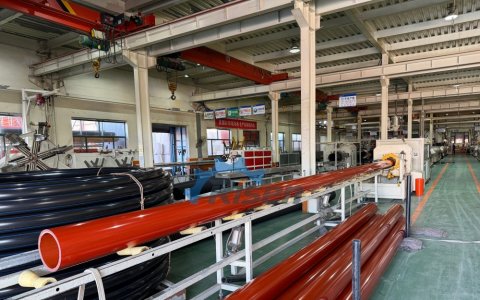

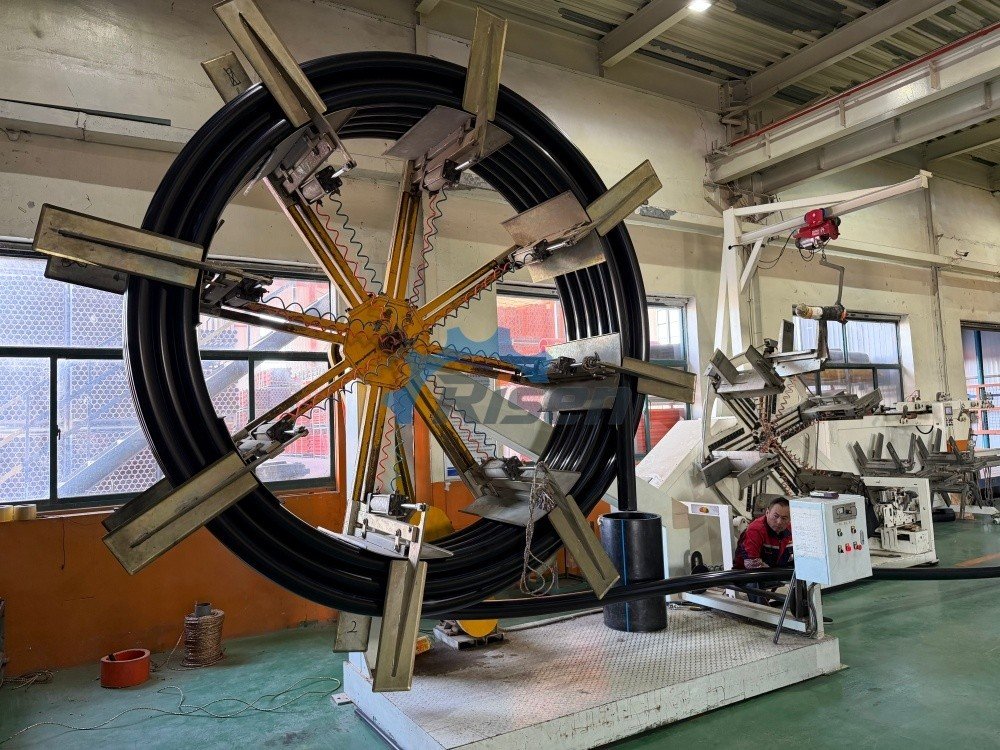

6..Stacker&Winder
