Device for electrostatic powder spraying on the inner wall of the steel pipe fben
Products
Device for electrostatic powder spraying on the inner wall of the steel pipe fben
Technical characteristics of the vehicle:
Diameter of steel tubes: from 426 to 3200mm
Length of steel tubes: from 6000 to 18000mm
Capacity: 1 to 3.8 m2/min
Paint coating thickness: from 50 to 500um
Emissions and noise: in accordance with national standards
Detailed product information

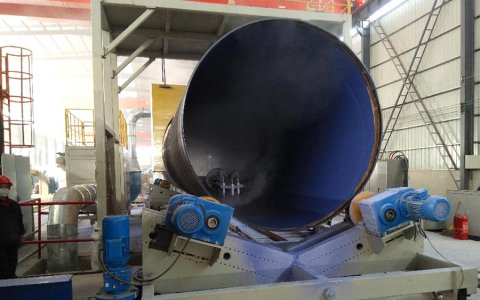

This equipment applies epoxy powder coating to the inner surface of cleaned steel tubes. One steel pipe is placed on a rotating production line and a powder dispenser is inserted into it. Medium frequency heating is used for simultaneous heating and powder spraying. Powder spraying is based on high voltage electrostatic spraying. Due to the high voltage electrostatic spray (80 kv), the powder coating is uniformly applied to the inner surface of the steel pipe, forming an anti-corrosion protection layer.
Request prices now
Product name:Device for electrostatic powder spraying on the inner wall of the steel pipe fben
-
