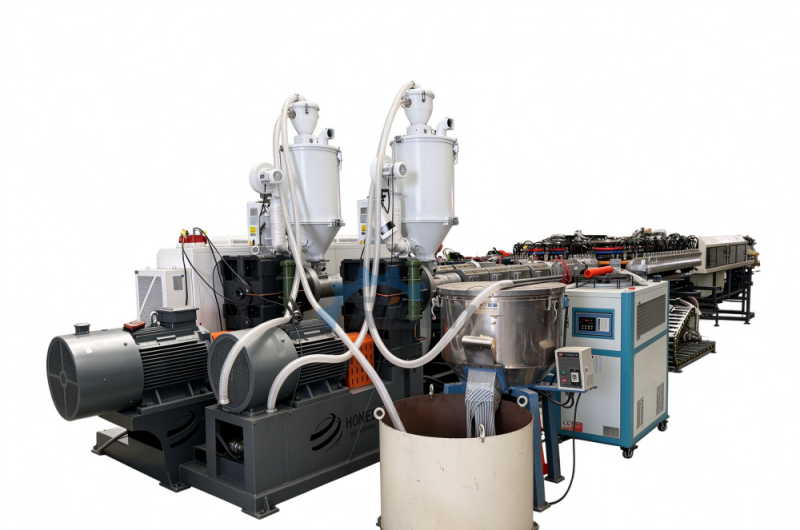

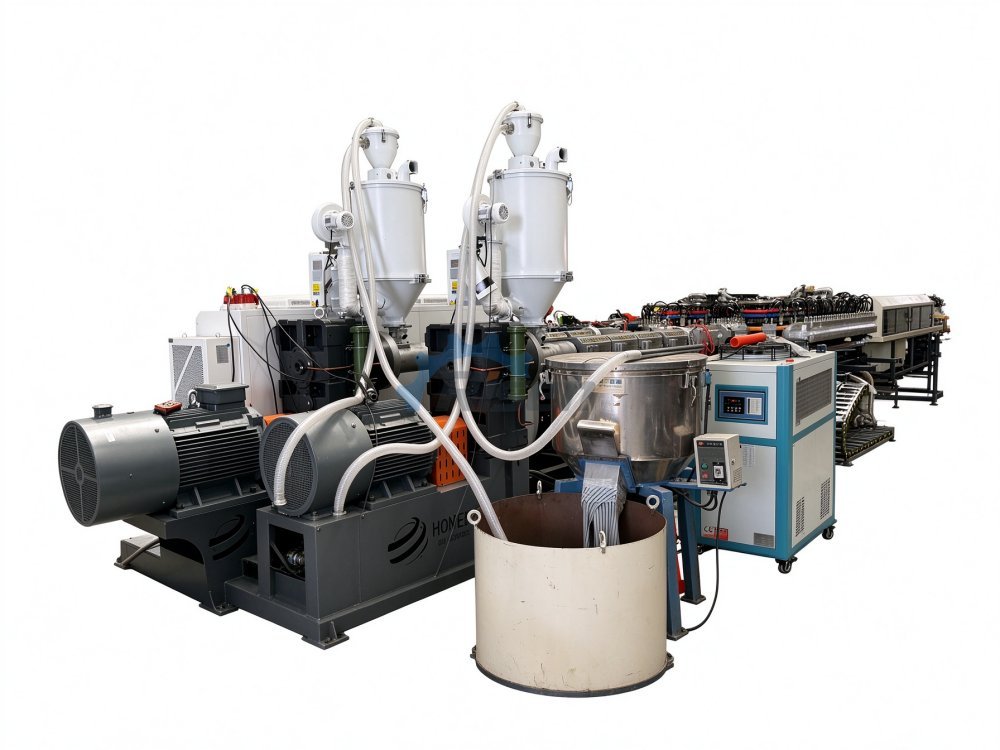

PE HDPE Double Wall Corrugated Pipe Extrusion Line

PE HDPE LDPE Double Wall Corrugated Pipe Production Line

Application Range：

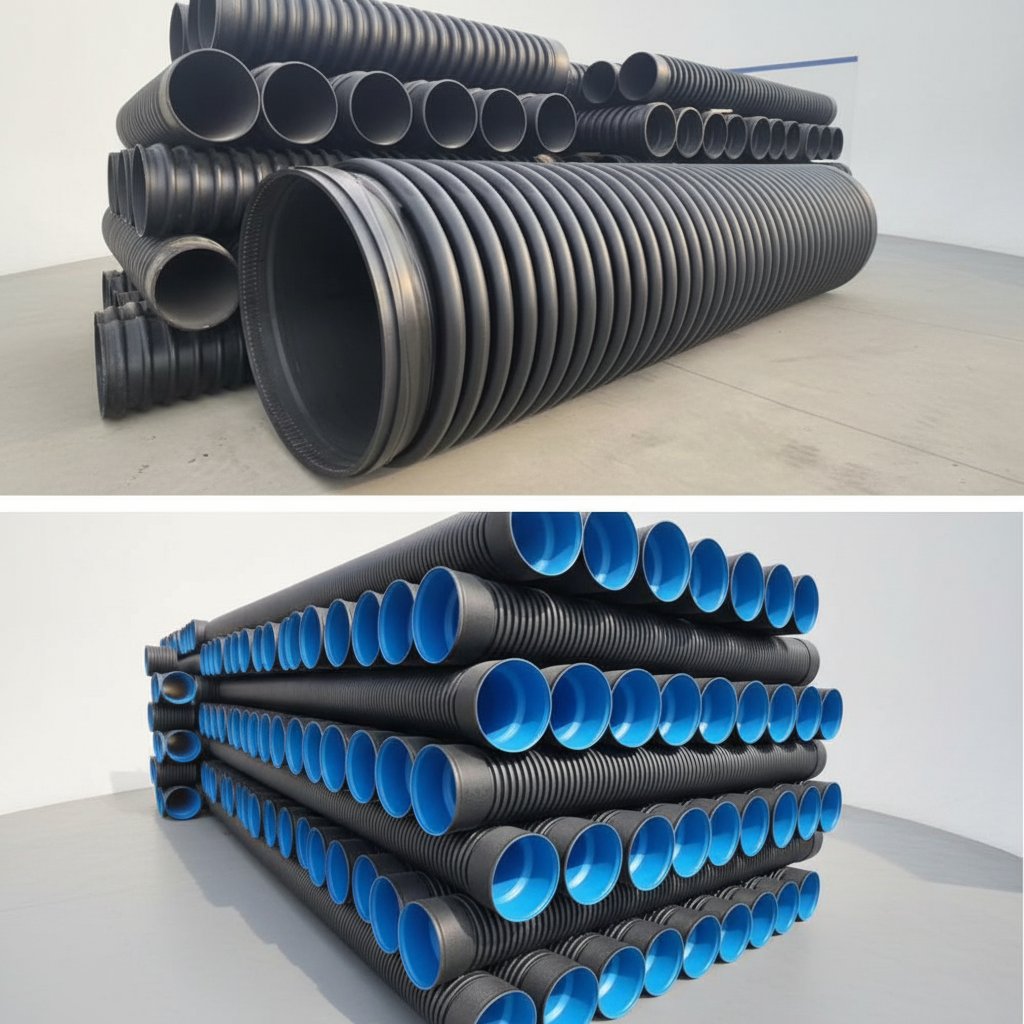

   PE HDPE LDPE Double Wall Corrugated Pipe has a wide range of applications.

1. Municipal Drainage & Sewerage: It is widely used for urban rainwater collection and sewage discharge systems.

2. Underground Engineering: Applied in various underground construction projects for water drainage.

3. Electrical & Communication Cable Protection: The pipe can protect power and communication cables underground, preventing damage from external pressure.

   The pipe features lightweight, good flexibility and excellent pressure resistance, which makes it ideal for underground installation.

Main Technical Parameters

Main Features:

1. Suitable for extrusion production of PE, HDPE, LDPE double wall corrugated pipes.

2. Raw material: PE / HDPE plastic pellets.

3. Production speed: 3–6 m/min.

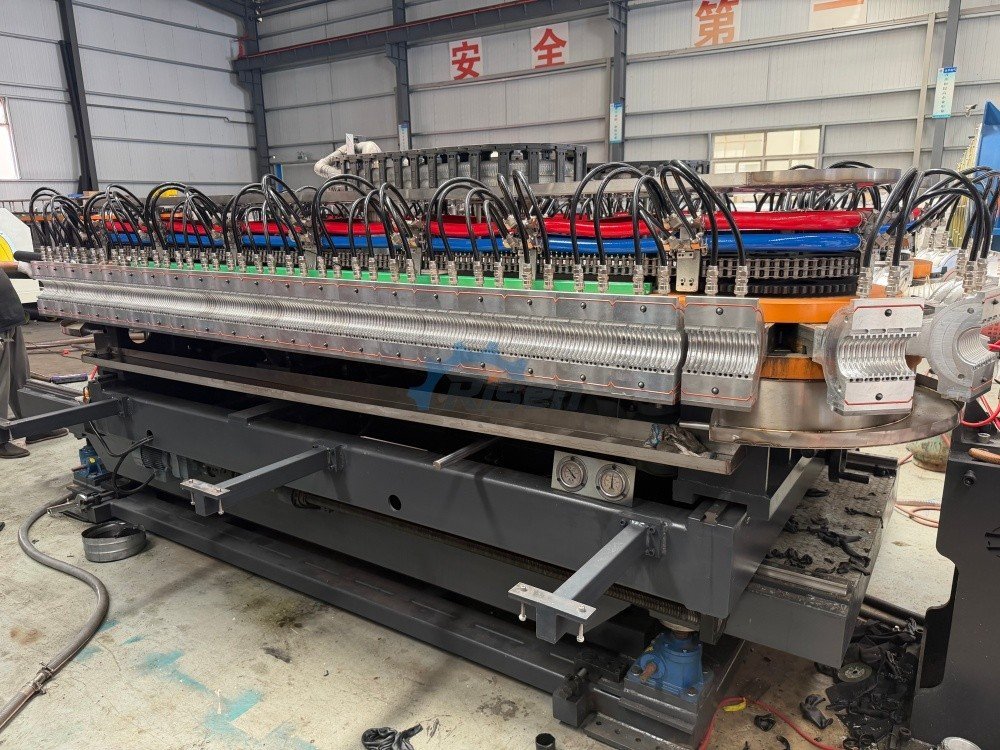

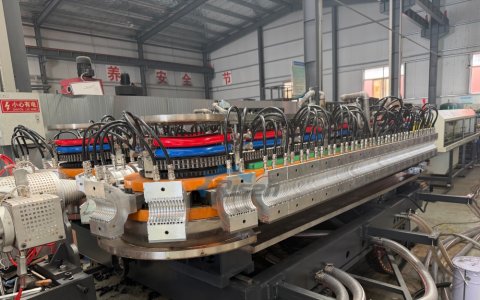

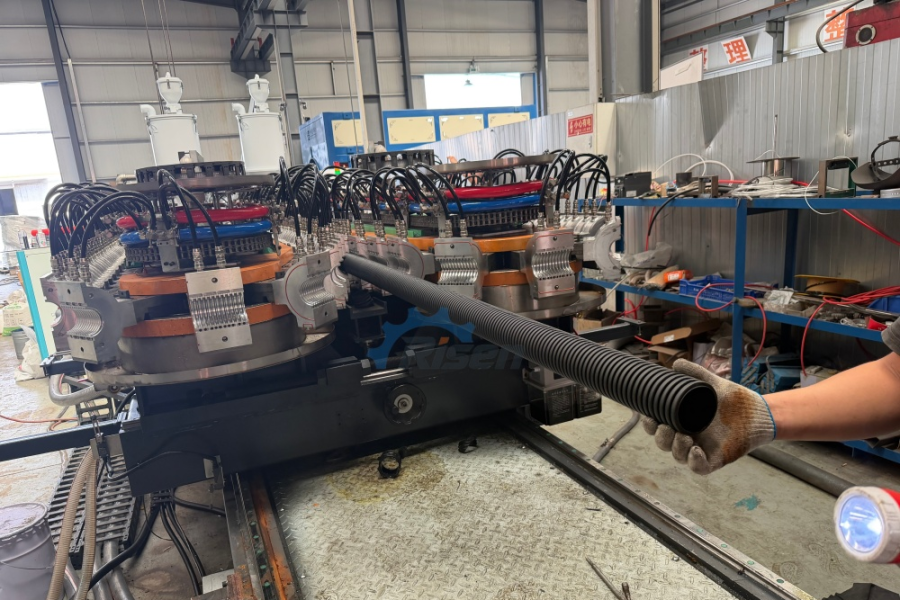

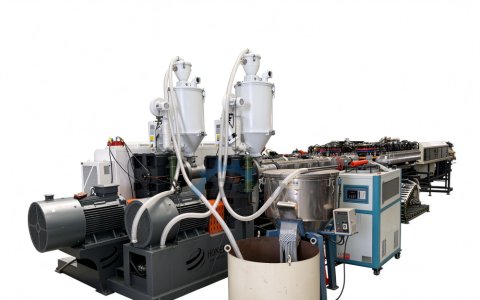

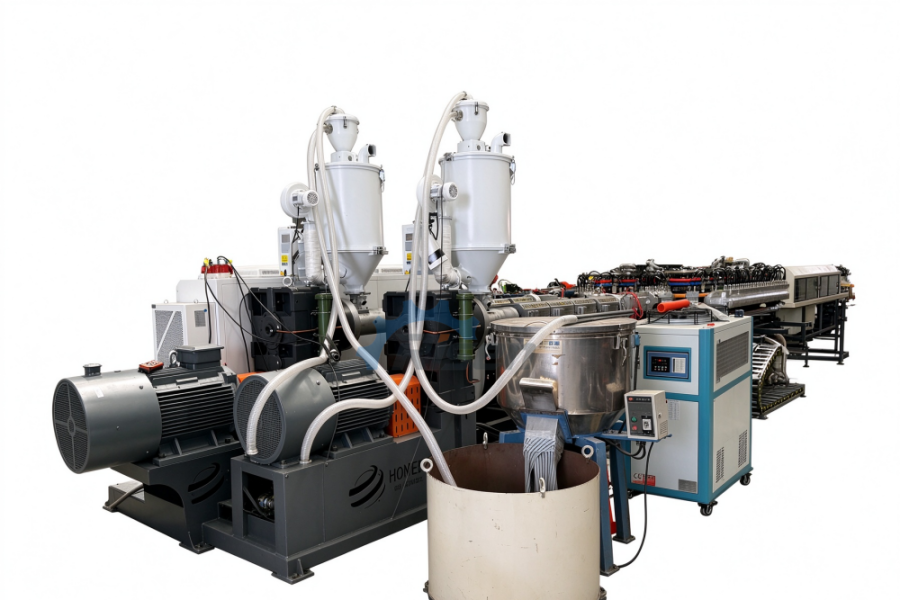

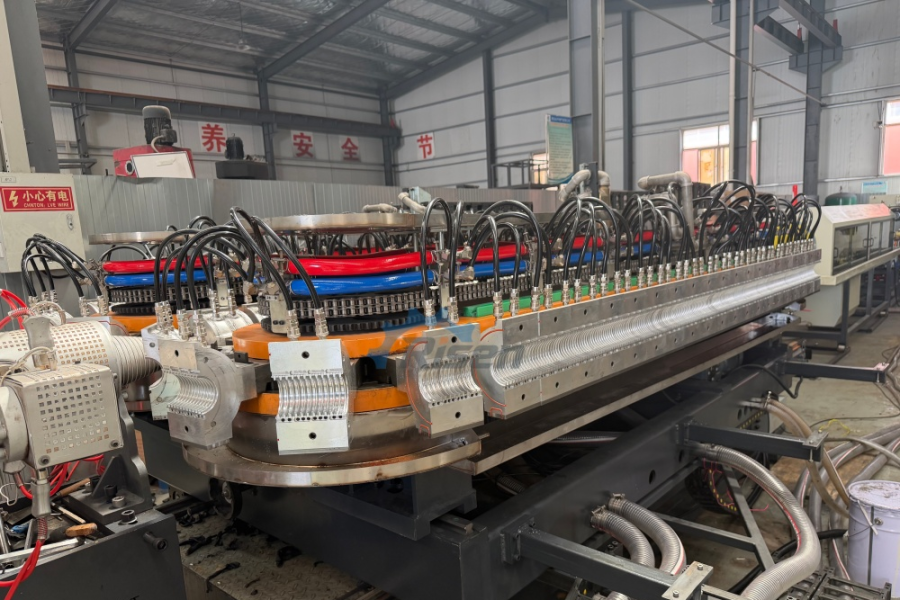

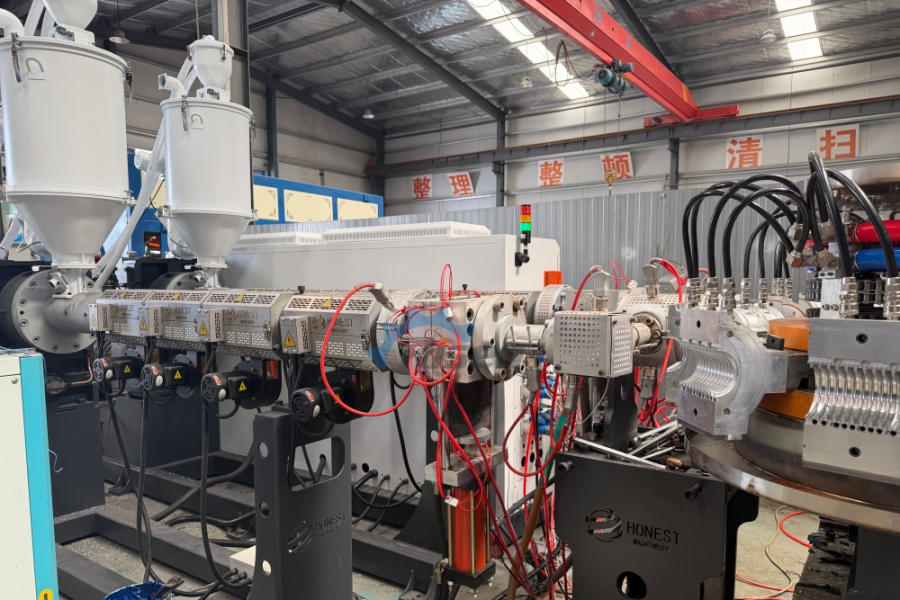

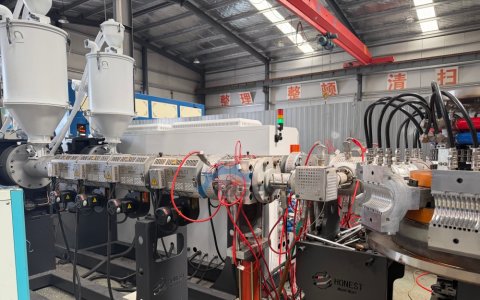

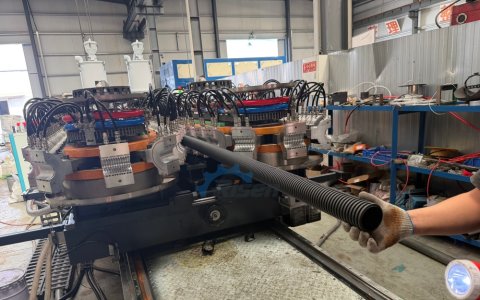

4. Main components: Vacuum auto-feeder, single screw extruder, die head, forming mold, corrugated pipe former, cooling fan.

5. Services available: Technical support, formula guidance and raw material purchasing suggestions.




1. Functions

Pipe Extrusion Forming: Melt and extrude PE, HDPE, LDPE raw pellets to continuously produce double wall corrugated pipes. Wide Material Compatibility: Suitable for multiple polyethylene materials, the finished pipes are widely used in municipal drainage, sewerage, underground engineering, cable protection and other fields.

2. Technical features:

Intelligent Control: The PLC system precisely controls temperature, speed and traction to ensure stable pipe forming and reduce reject rate. High Efficiency & Energy Saving: Optimized extrusion structure saves energy and shortens production cycles. High-precision Forming: Precision forming mold and calibration system ensure uniform pipe wall thickness and stable diameter tolerance.
