U-PVC Pipe Production Line

U-PVC Pipe Production Line

Brief Introduction:

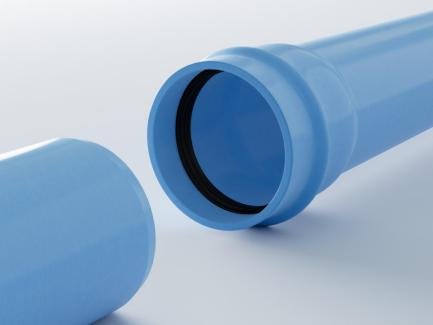

U-PVC pipe is widely used as underground drainage pipe,high-pressure pipe and duct pipe and conduit pipe.

Machine Introduction:

Our core principle:

Maximize component service life and consistently produce good quality pipes.

1. Production line could produce φ16-630mm pvc pipe which could meet the standard of ISO1452,ASTM D2241, BS and DIN

2. Highly anti-abrasion screw and barrel which is suitable for high-calcium formula

3. Choose good material mould which could make even thickness pipe at the same time reduce the deformation in the middle of production

4. Long lifetime water pump and vacumm pump

5. Tractor adopts premium rubber

6. Siemens motor,ABB/Delta Inverter,Schneider/Siemens contacor,Omron temperature controller

Machine Model:

Machine List:

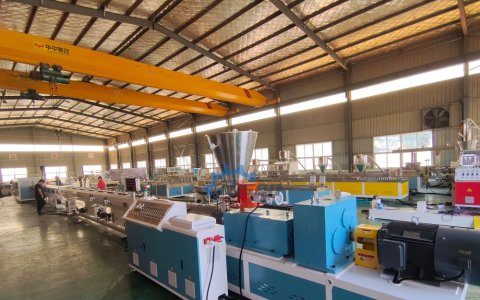

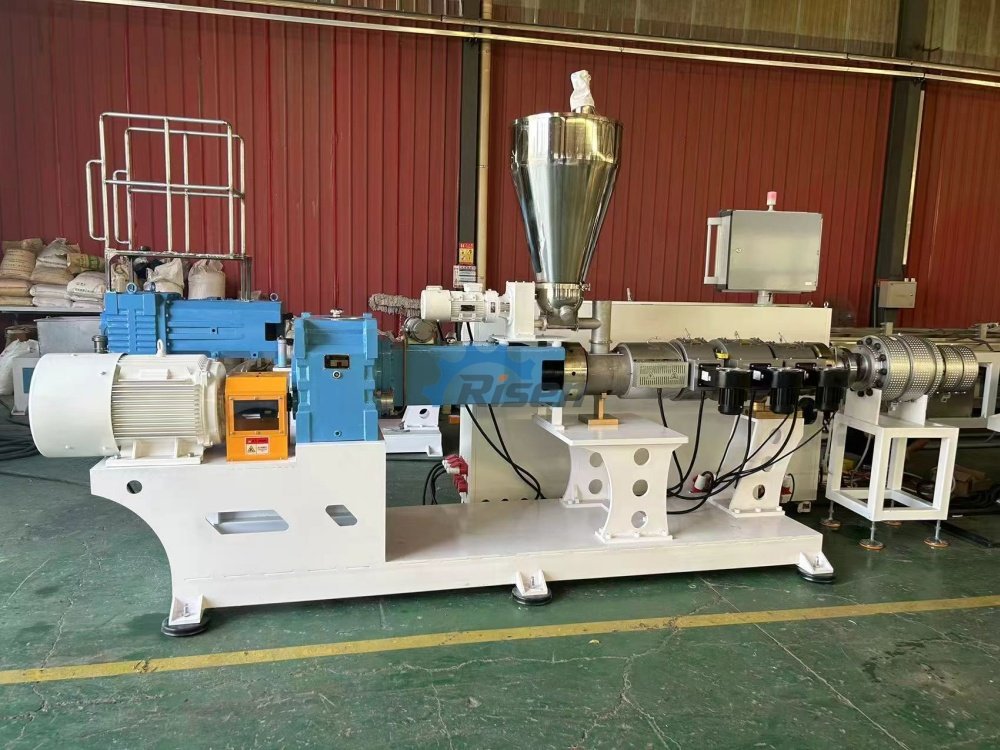

1. Double Screw Extruder

Suitable for high percentage in Calcium and reduce the formula cost

Nitrided bimetallic screw with the feature of long lifetime and wear resistance

High quality electric components as Siemens motor,ABB inverter,Schneider/Siemens controller,Omron temperature controller,Siemens PLC control and touch screen

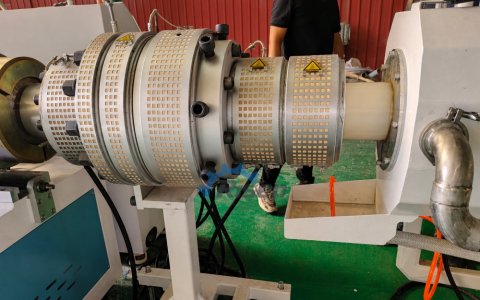

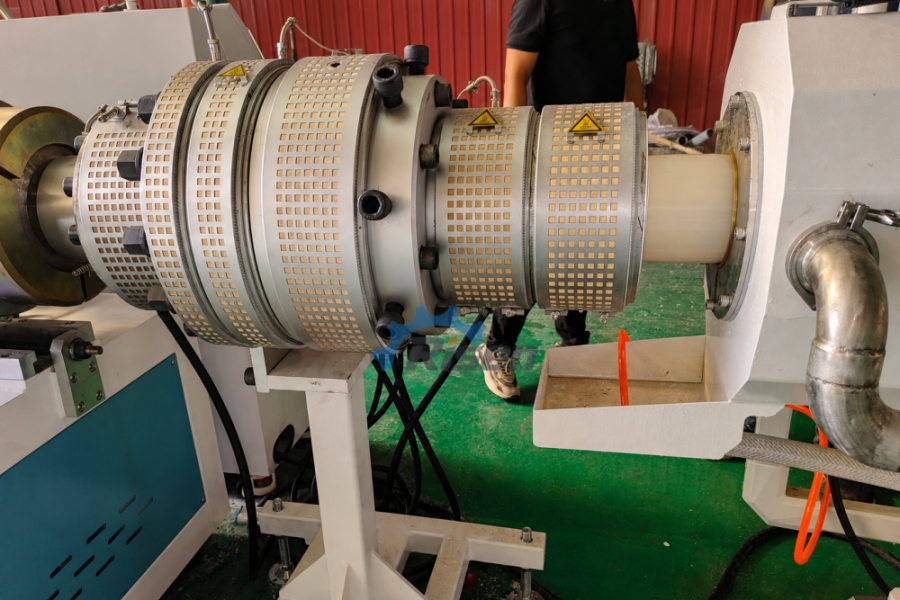

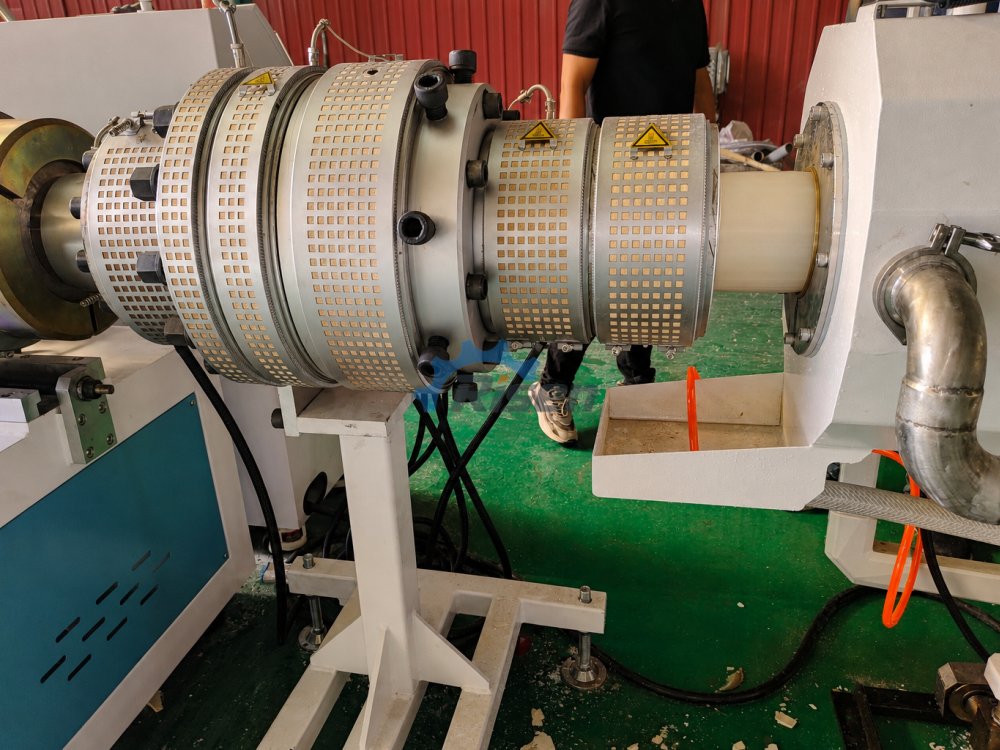

2. Die head

High-quality mould steel

Flow path is polished and chromeplated,good high-temperature rigidity and strong resistance to thermal deformation

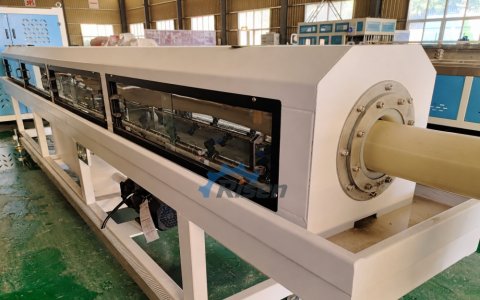

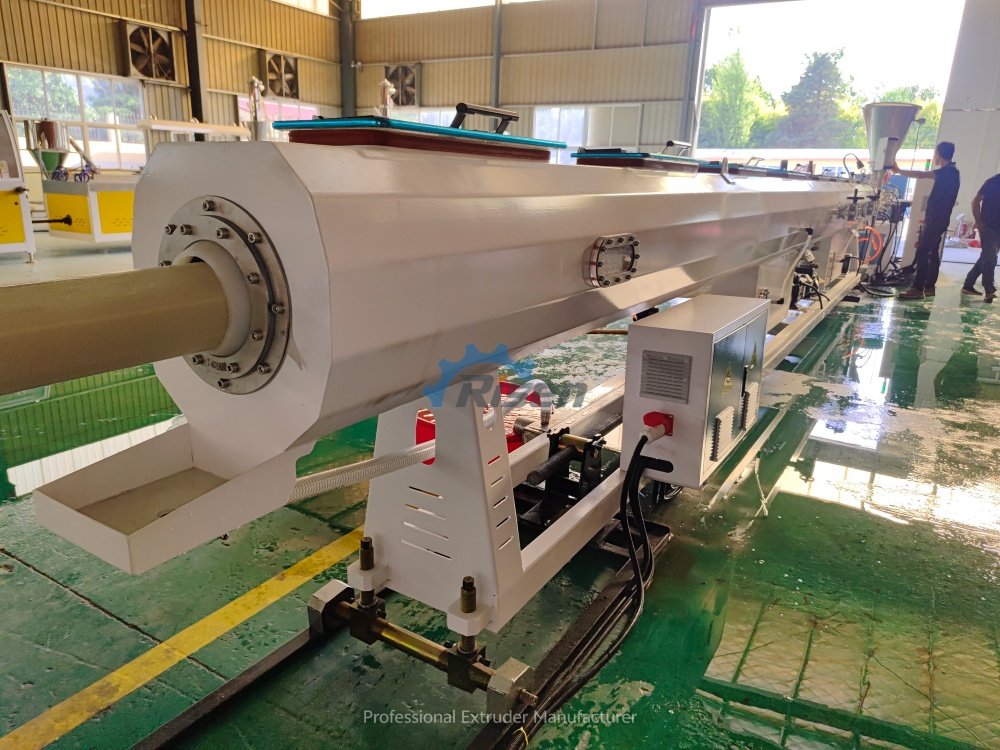

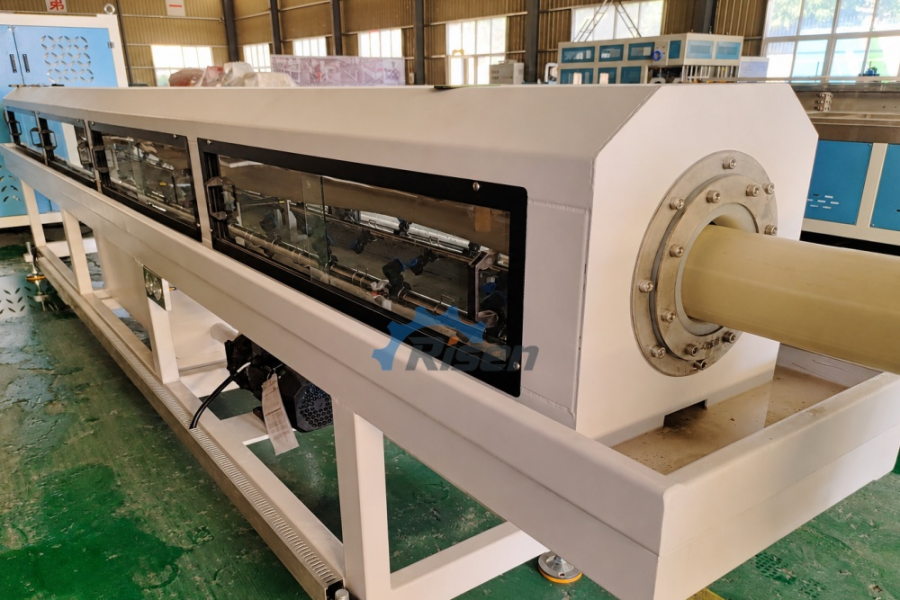

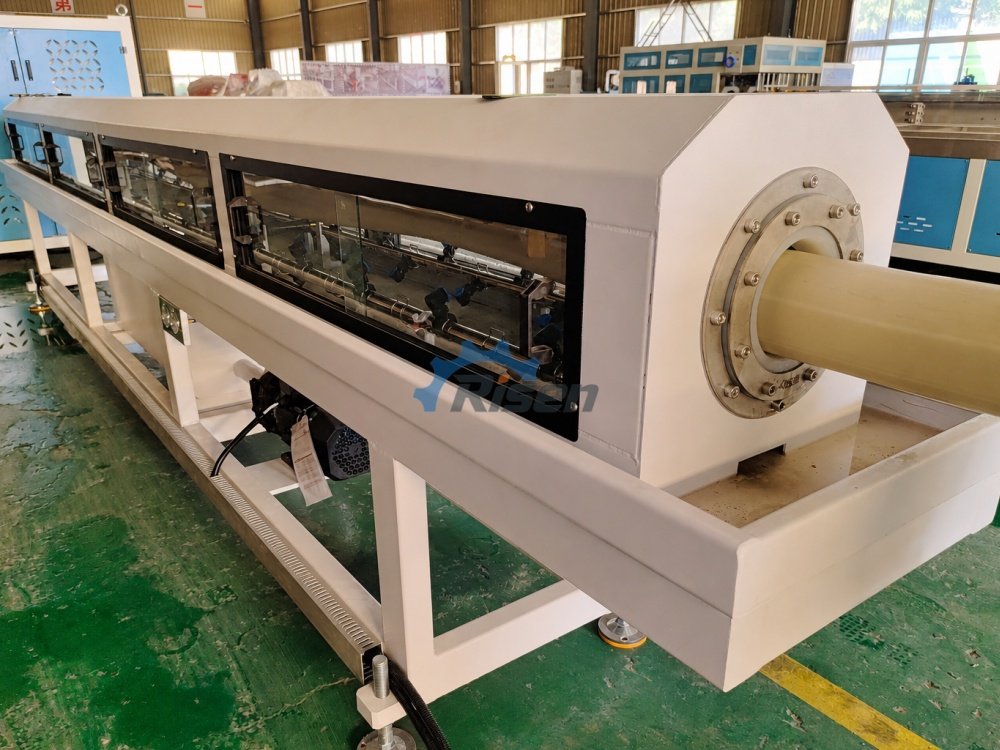

3. Vacuum Sizing Water Tank&Spraying Water Tank

304 Stainless steel water tank

VFD(variable frequency drives) control the vacuum degree precisely

High quality water-ring vacuum pump,mount water level gauge and impurity filter in the pipeline system

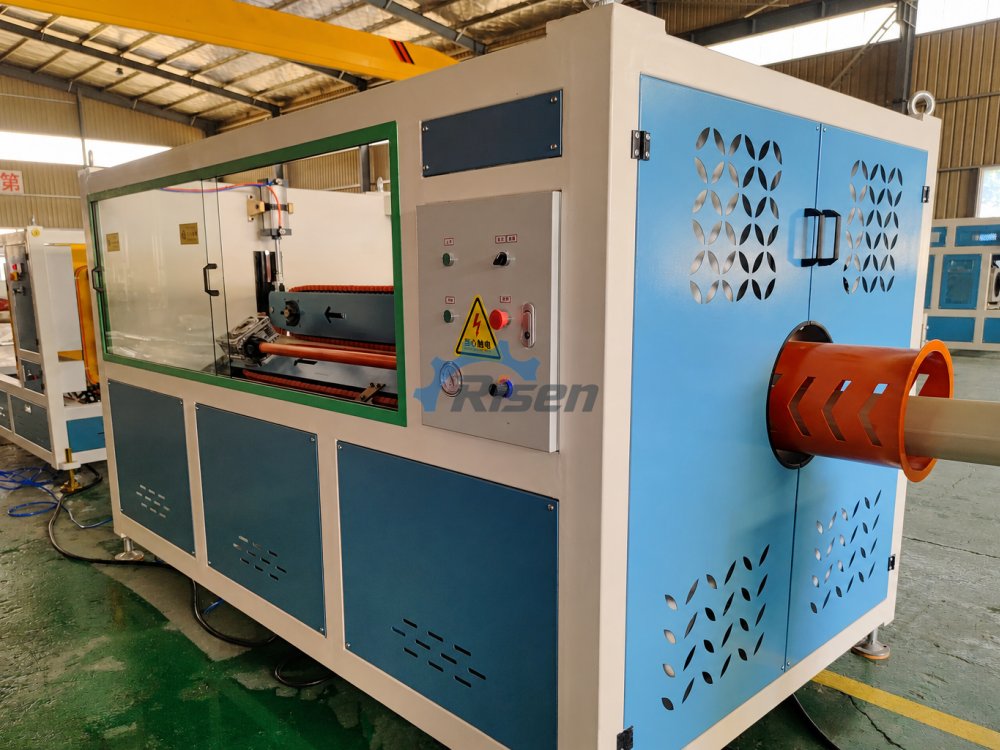

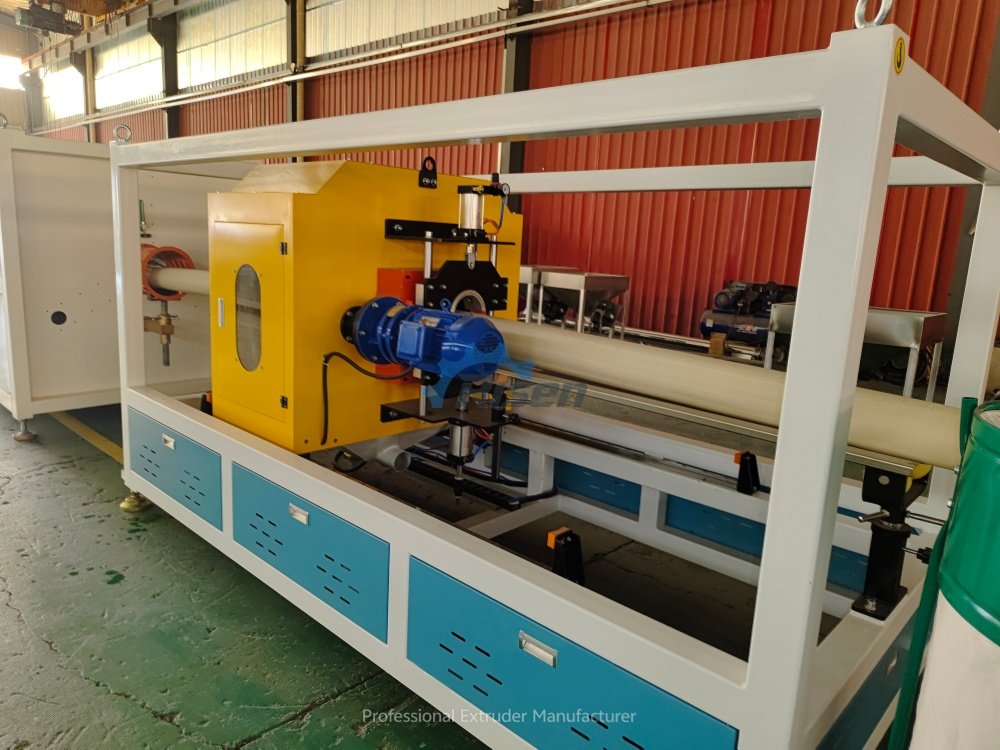

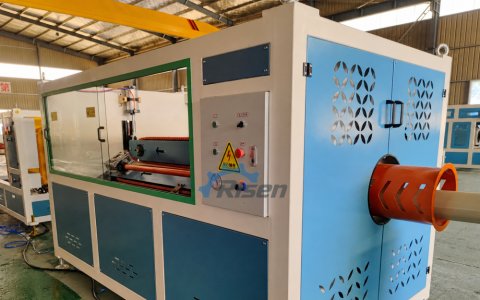

4. Multi-Claw Haul-off Unit

Multi-claw tractor could be with double-claw,three-claw,four-claw,six-claw and eight-claw,etc

Speed control by ABB inverter

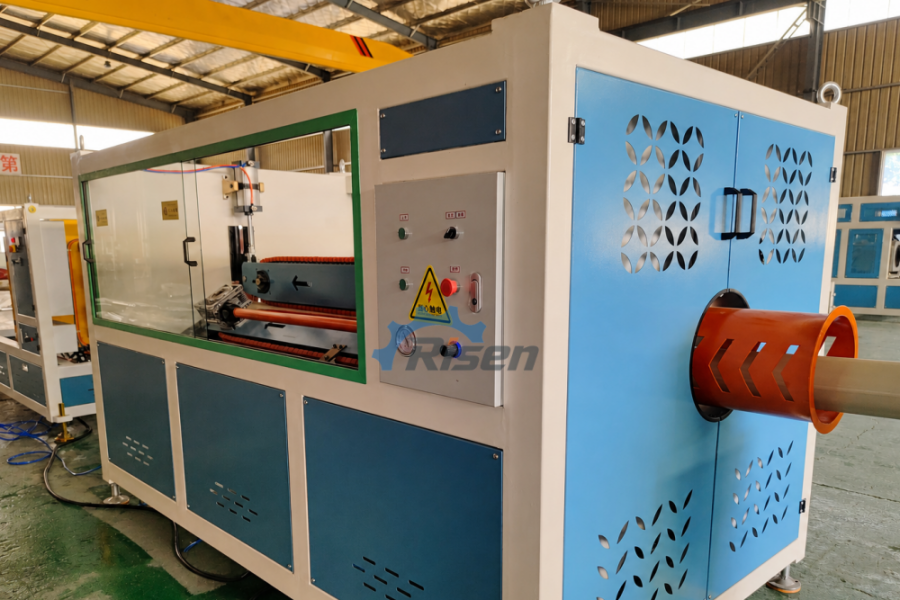

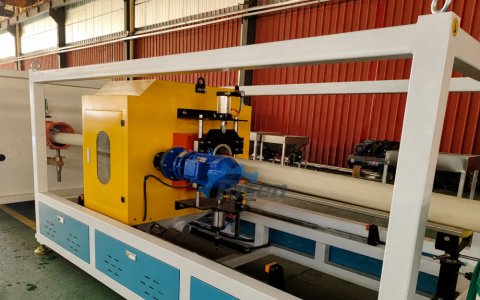

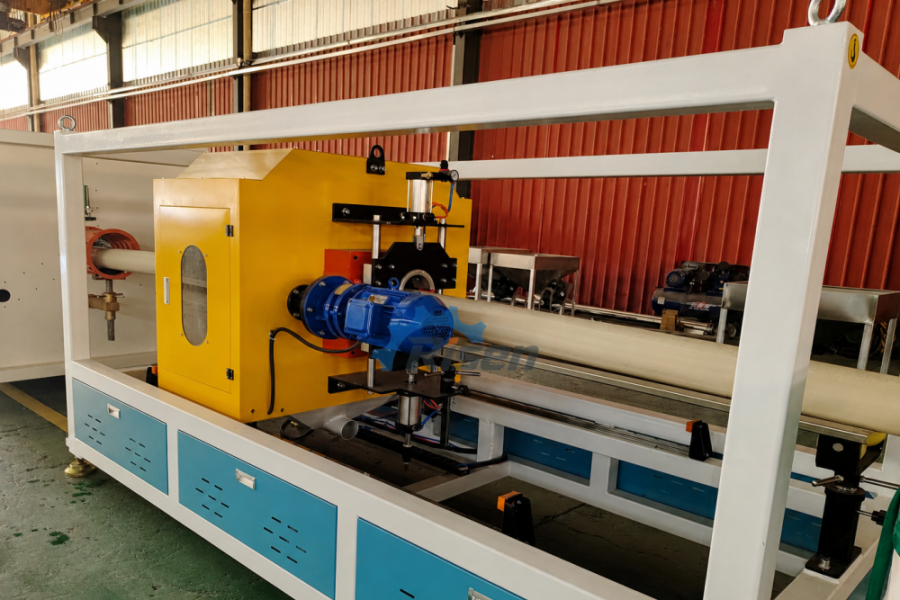

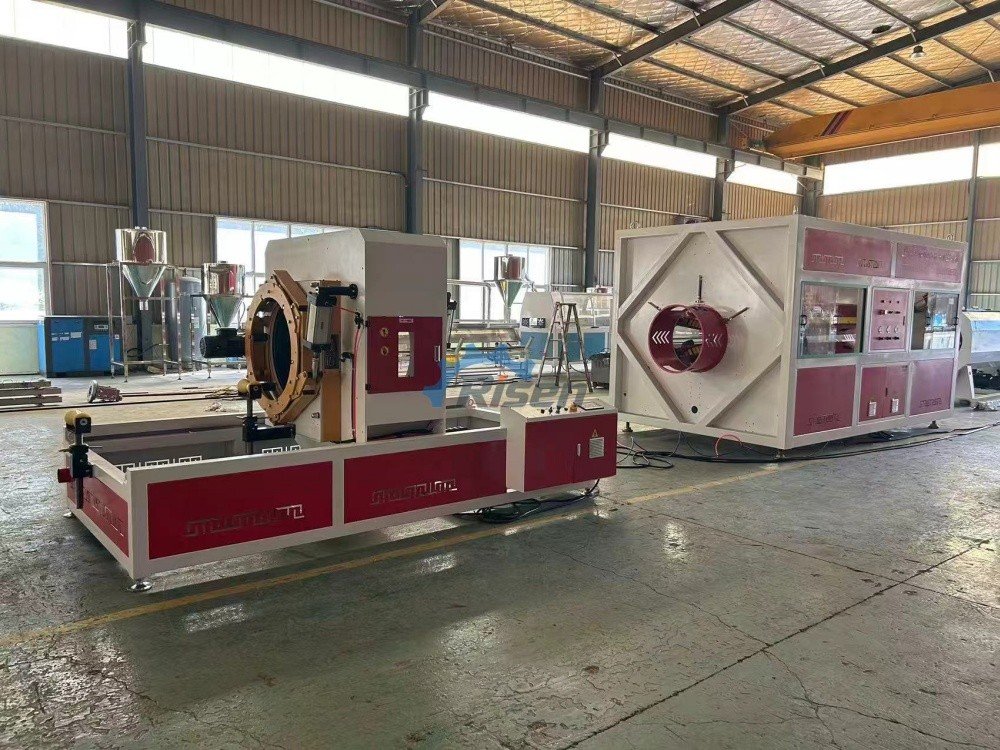

5.Non-dust Cutter

High-quality alloy steel SKD11 cutting blade

PLC control ,high-precision fixed-length cut

Chipless cutting

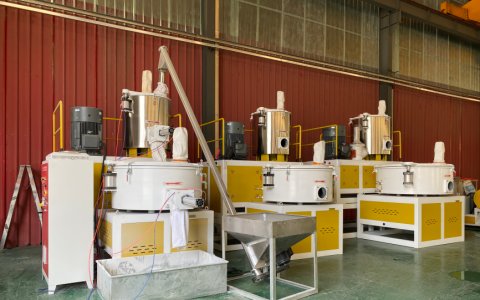

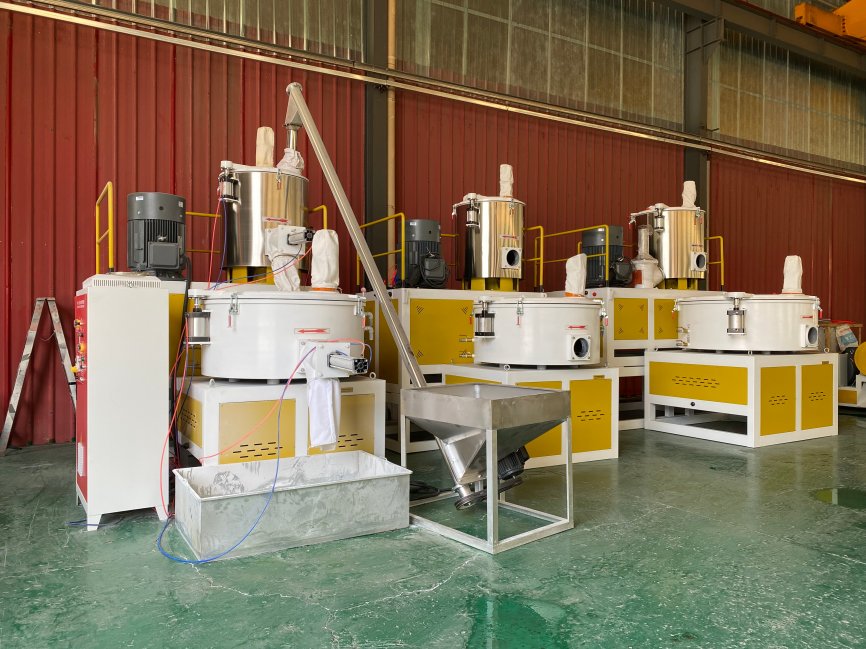

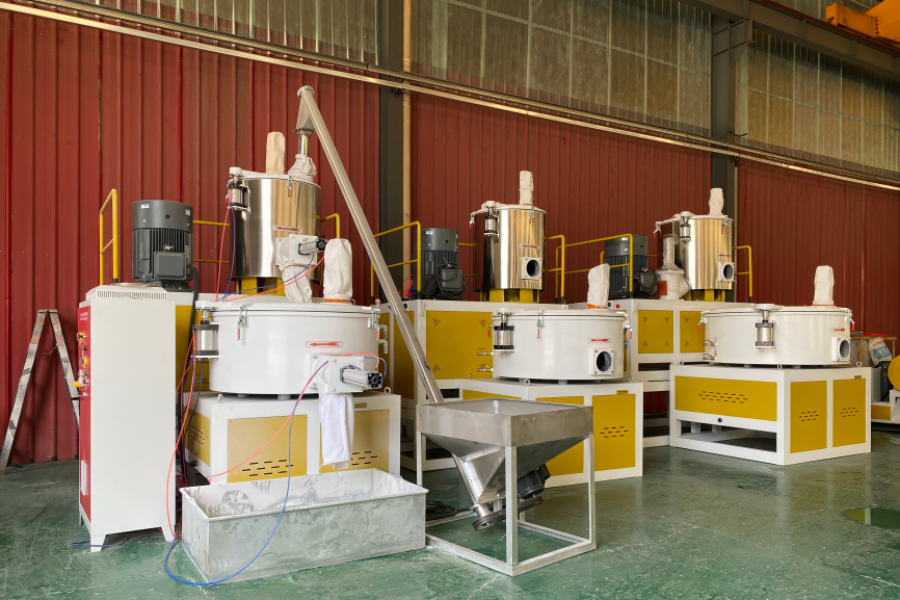

6.High speed and cooling mixer

The mixer is equipped with cast stainless steel propeller inside,it could achieve better abrasion resistance.Automatic spiral loader is equipped.The mixer adopts Siemens motor,ABB inverter,Omron temperature controller,and Siemens/Schneider contactor.

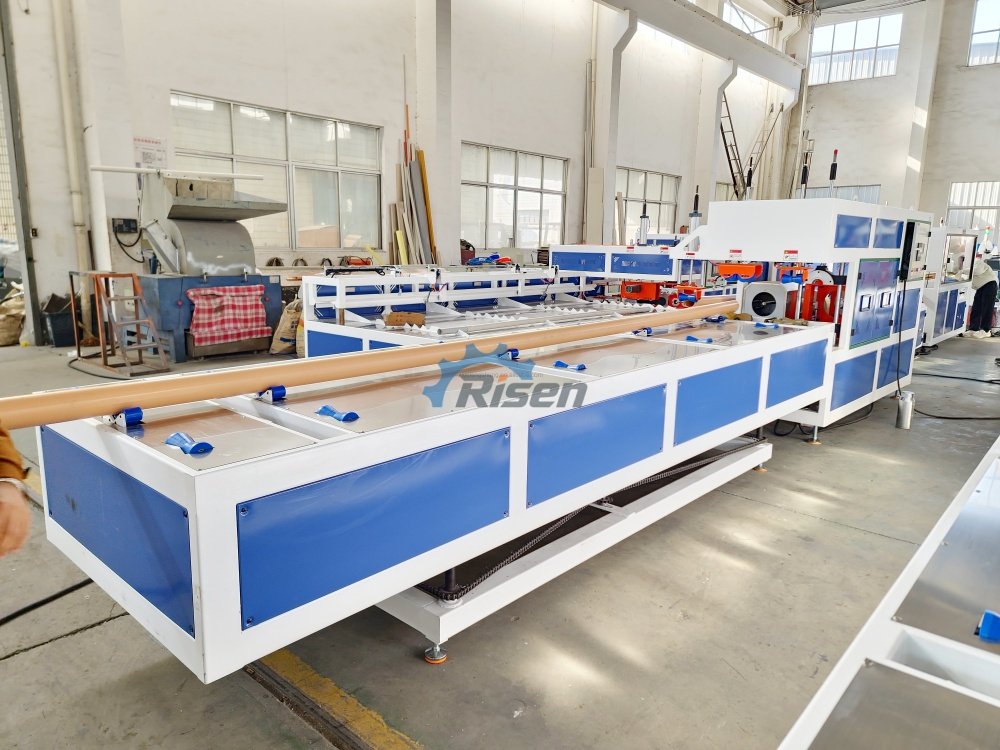

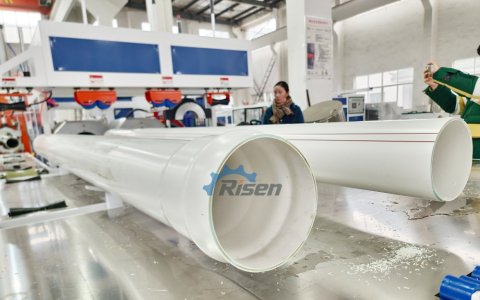

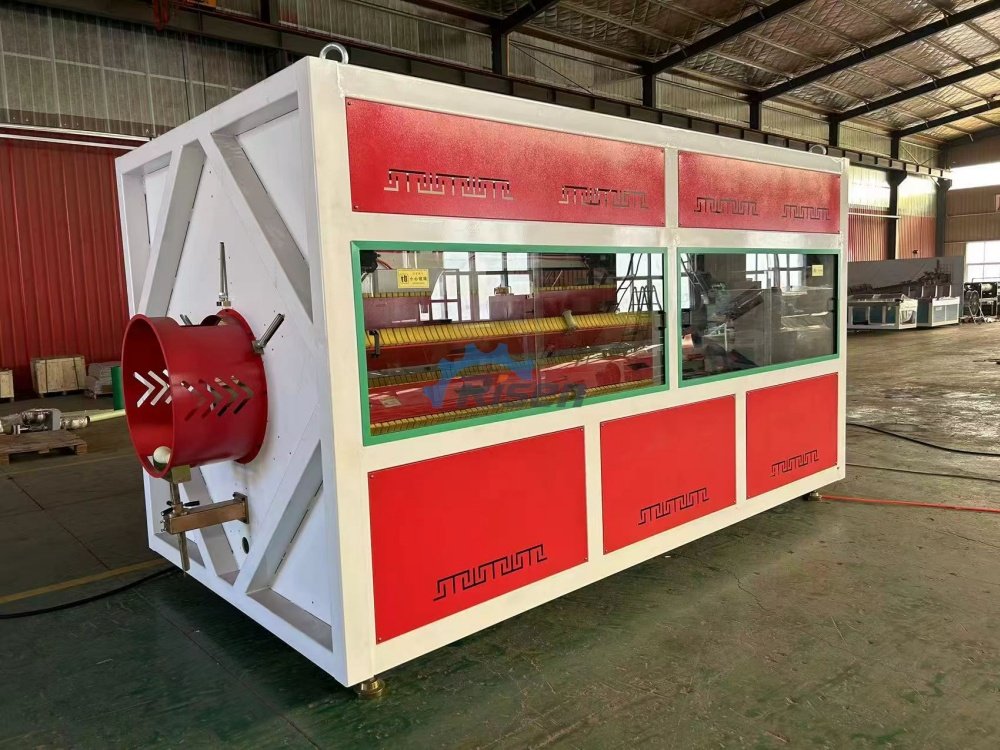

7.PVC Pipe Belling Machine

Automatic belling machine

The bellling machine could make two belling styles “U” and “R”

Mould size:OD 20mm-630mm

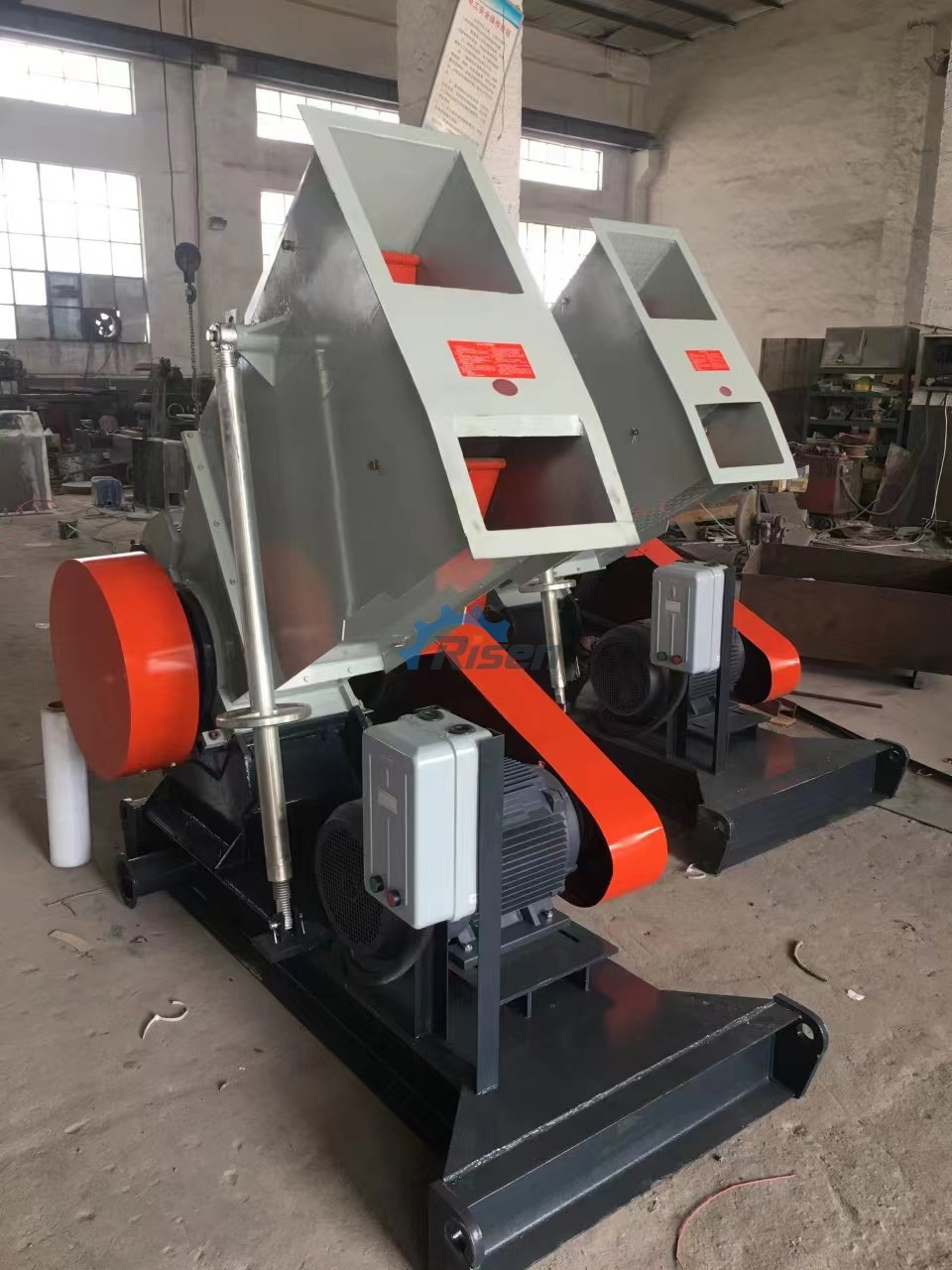

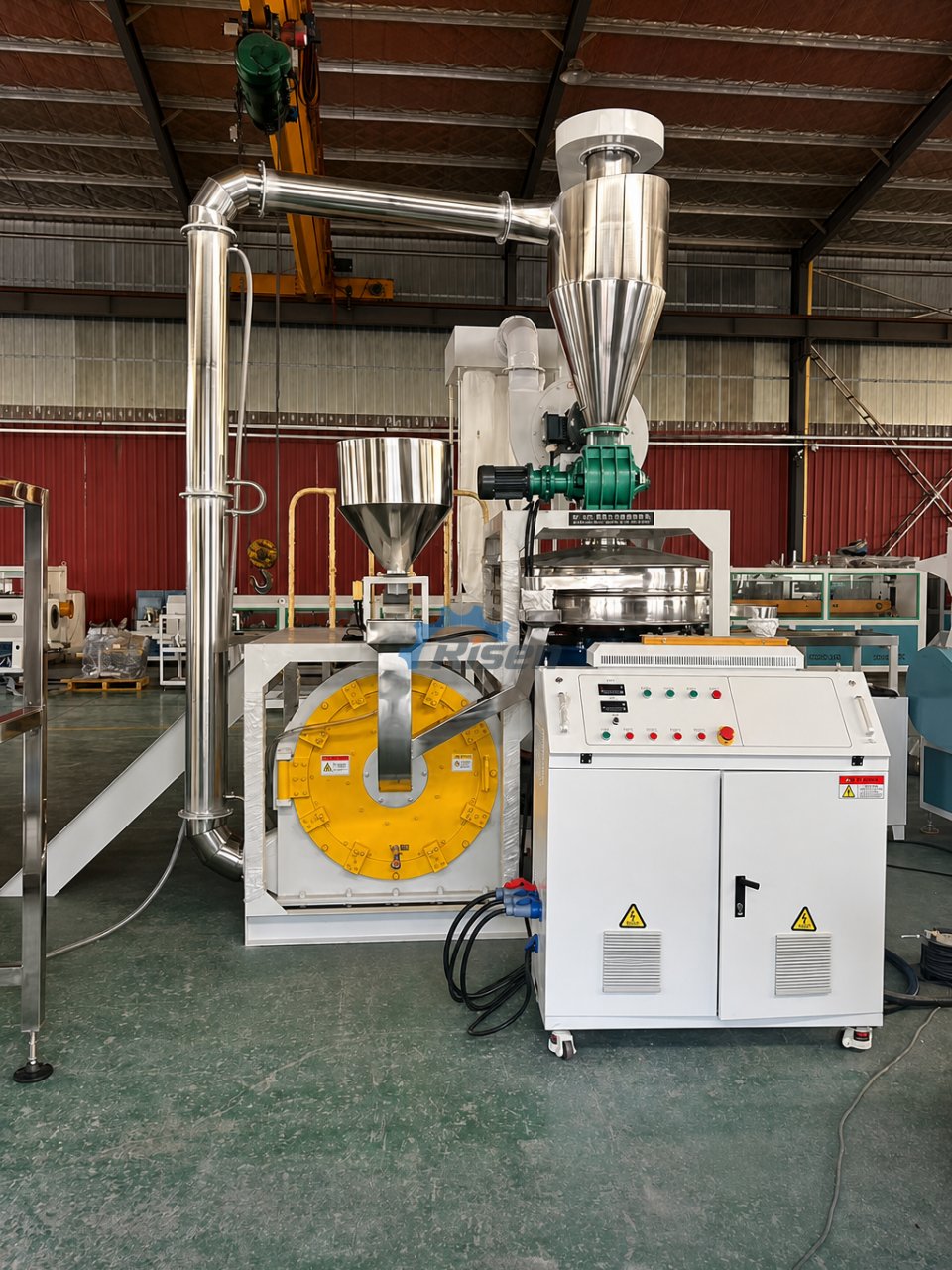

8.Crusher and Miller(For recycling)
